Determining Malfunctioning Part (HS-Can) [Multiplex Communication System]: L: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Possible cause

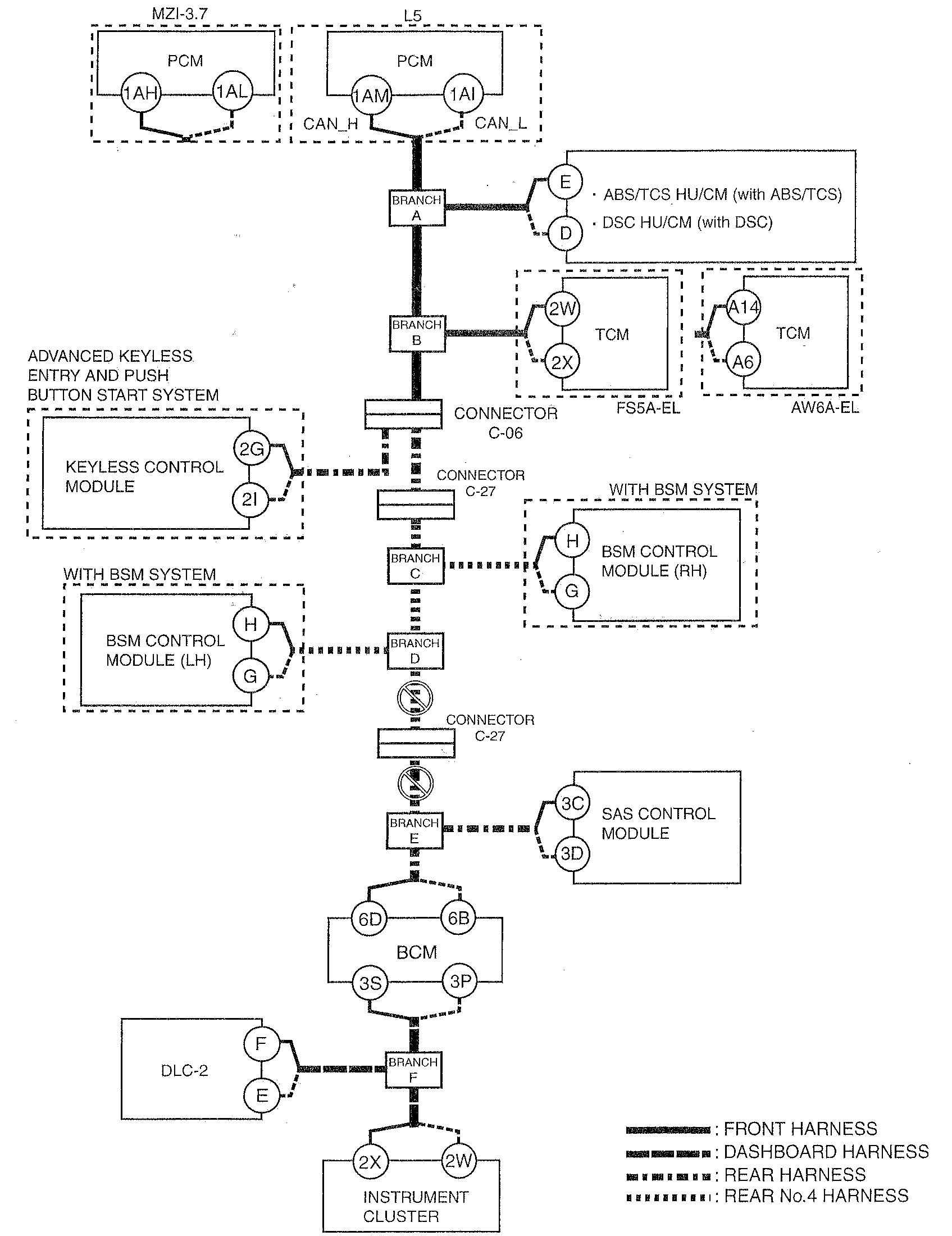

Fig 1: Connector C-27 System Wiring Diagram
G00487954Courtesy of MAZDA MOTORS CORP.
