Quick Diagnostic Chart [L5]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

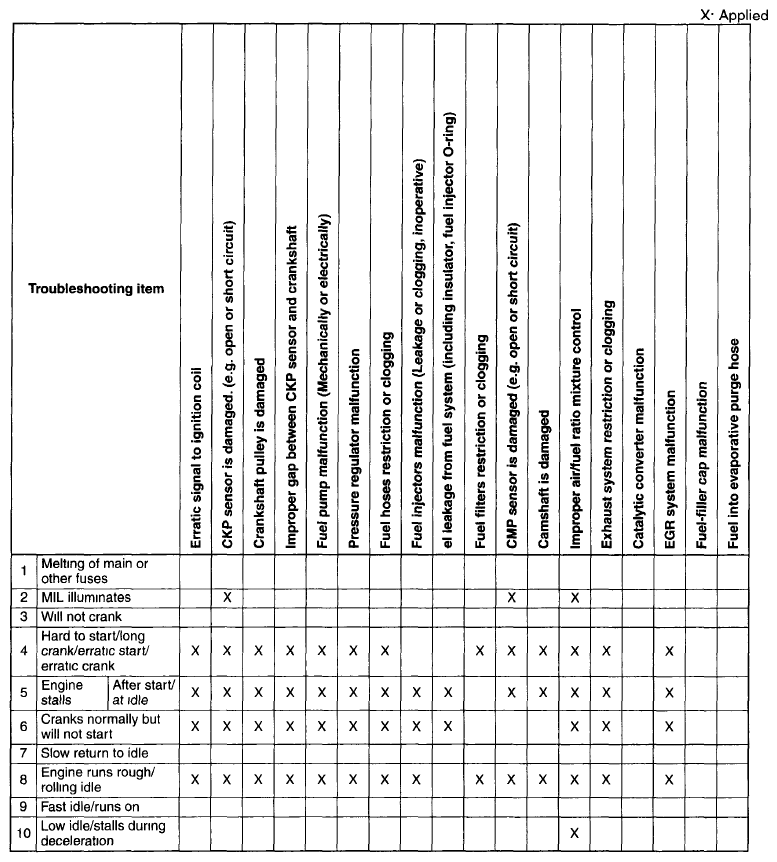

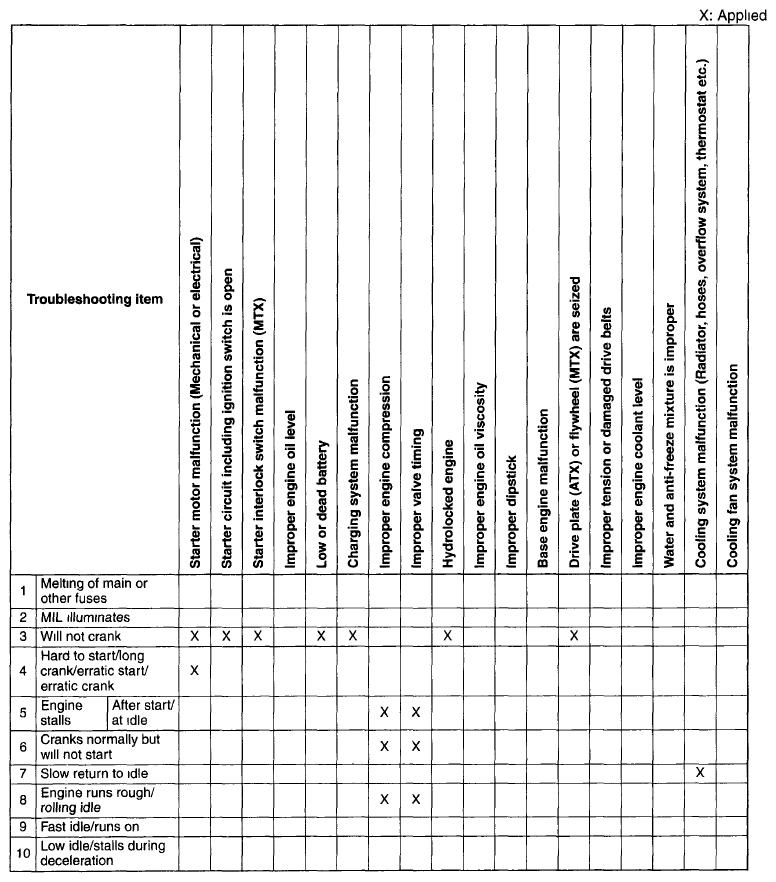

Fig 1: Quick Diagnostic Chart (1 Of 16)

Courtesy of MAZDA MOTORS CORP.

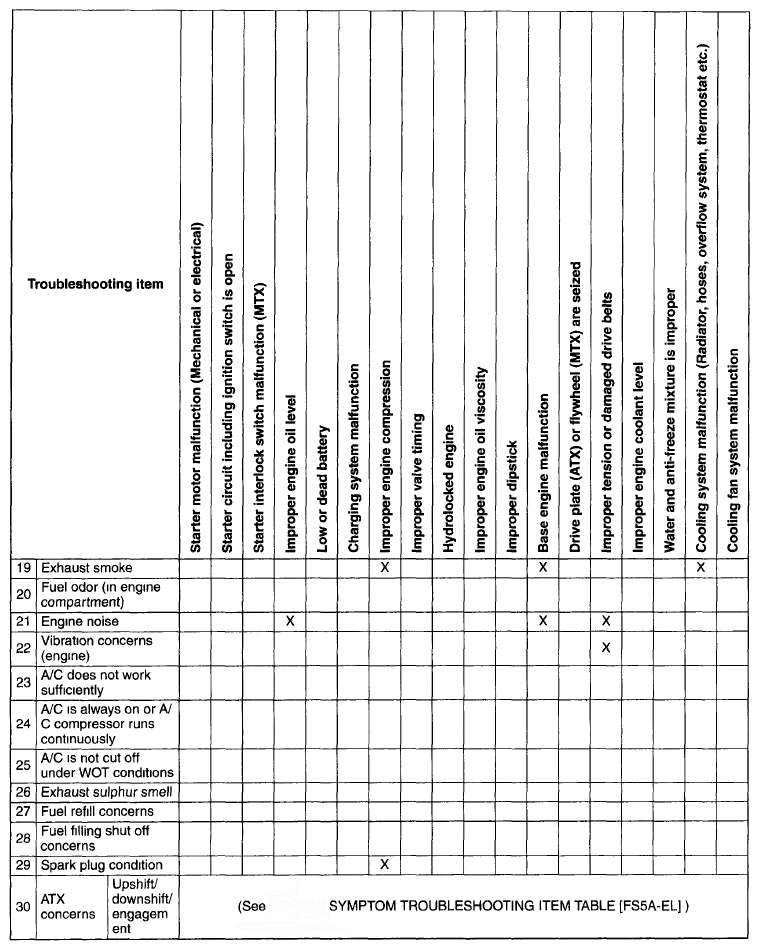

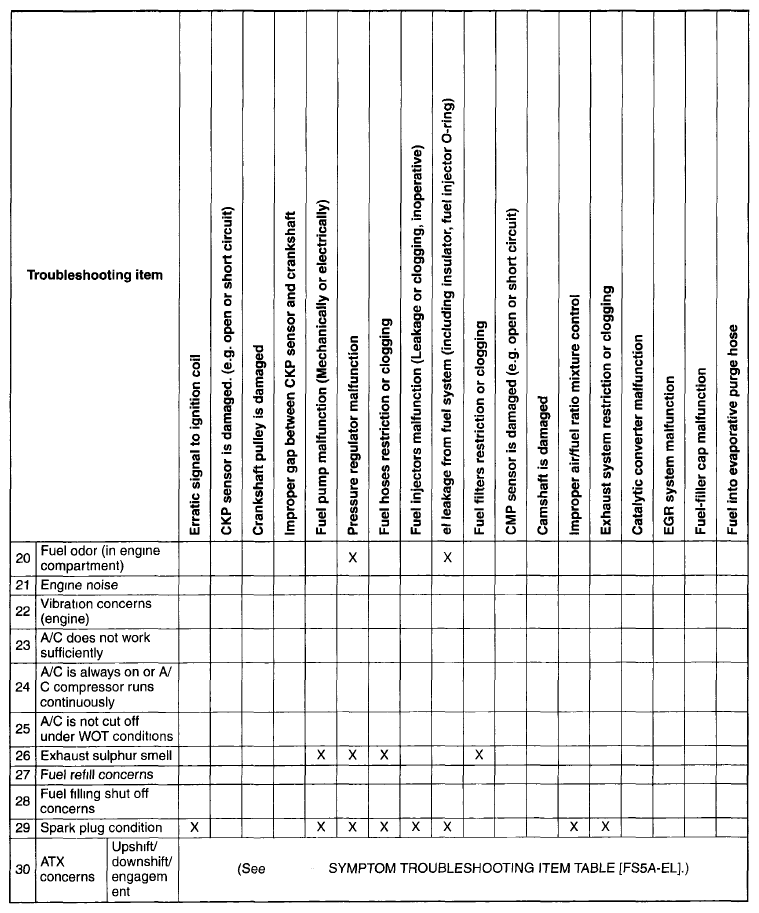

Fig 2: Quick Diagnostic Chart (2 Of 16)

Courtesy of MAZDA MOTORS CORP.

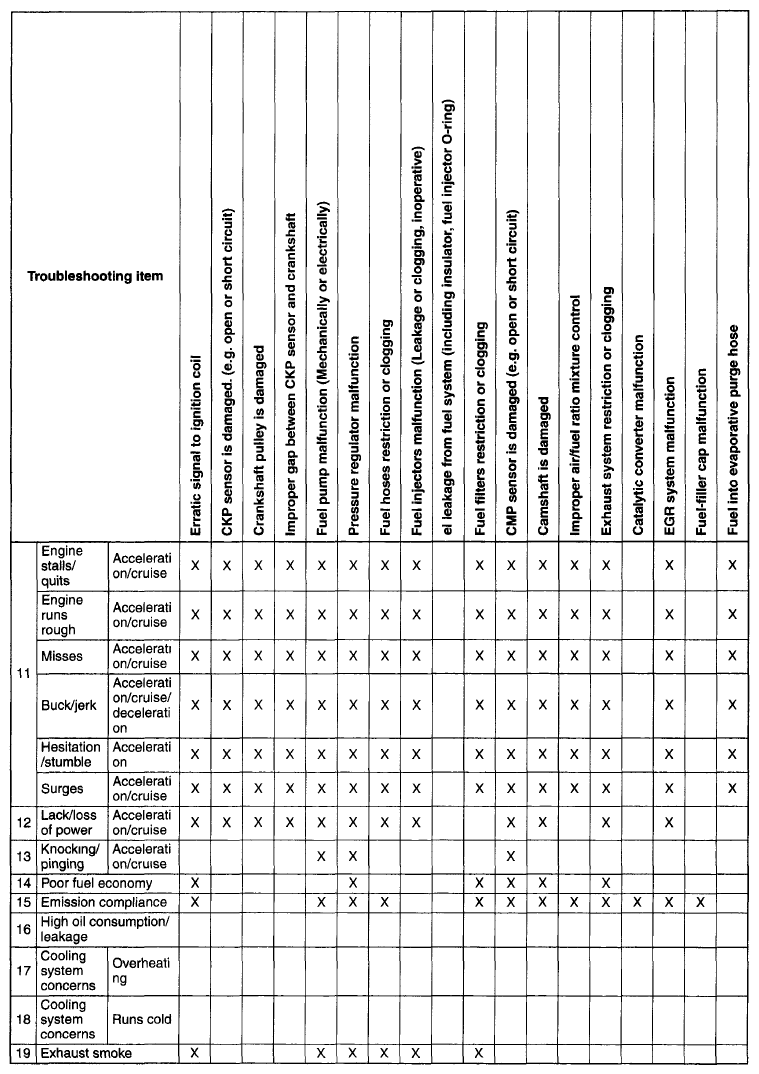

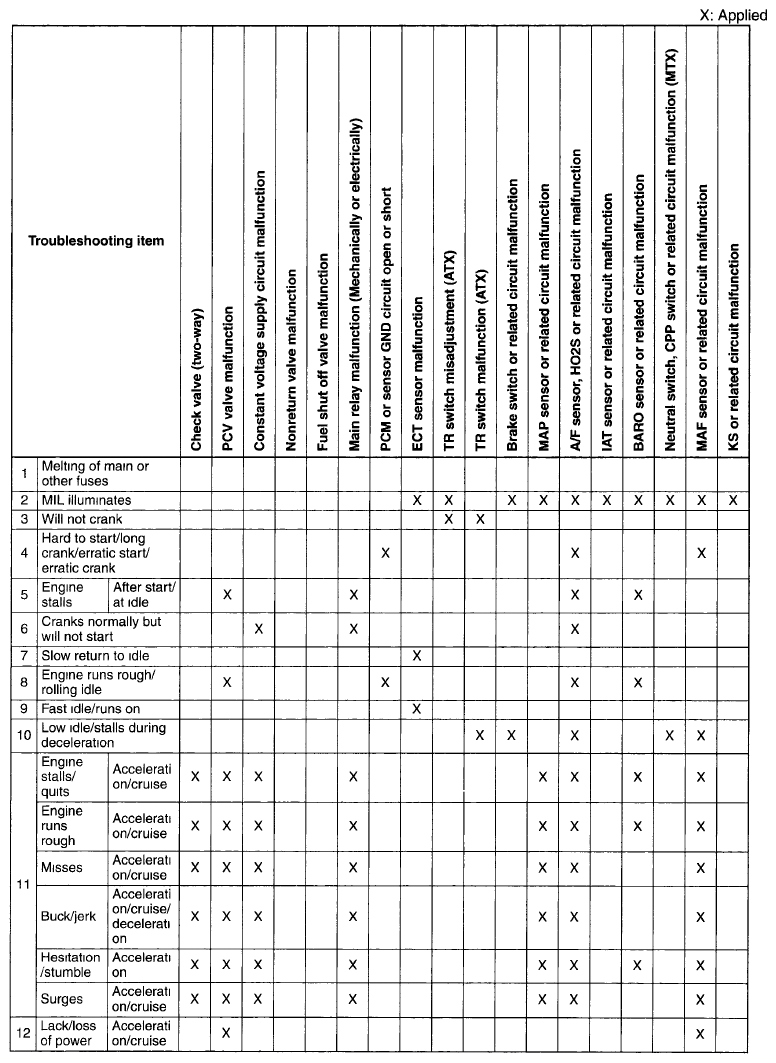

Fig 3: Quick Diagnostic Chart (3 Of 16)

Courtesy of MAZDA MOTORS CORP.

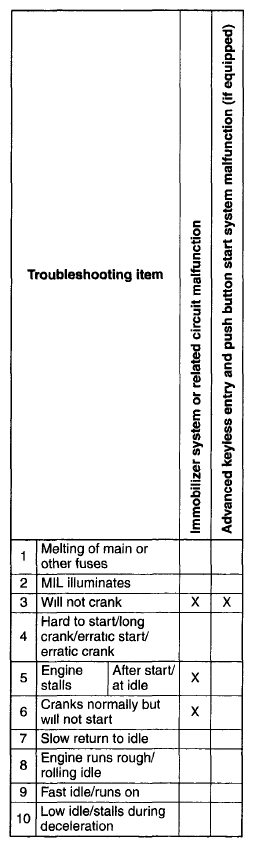

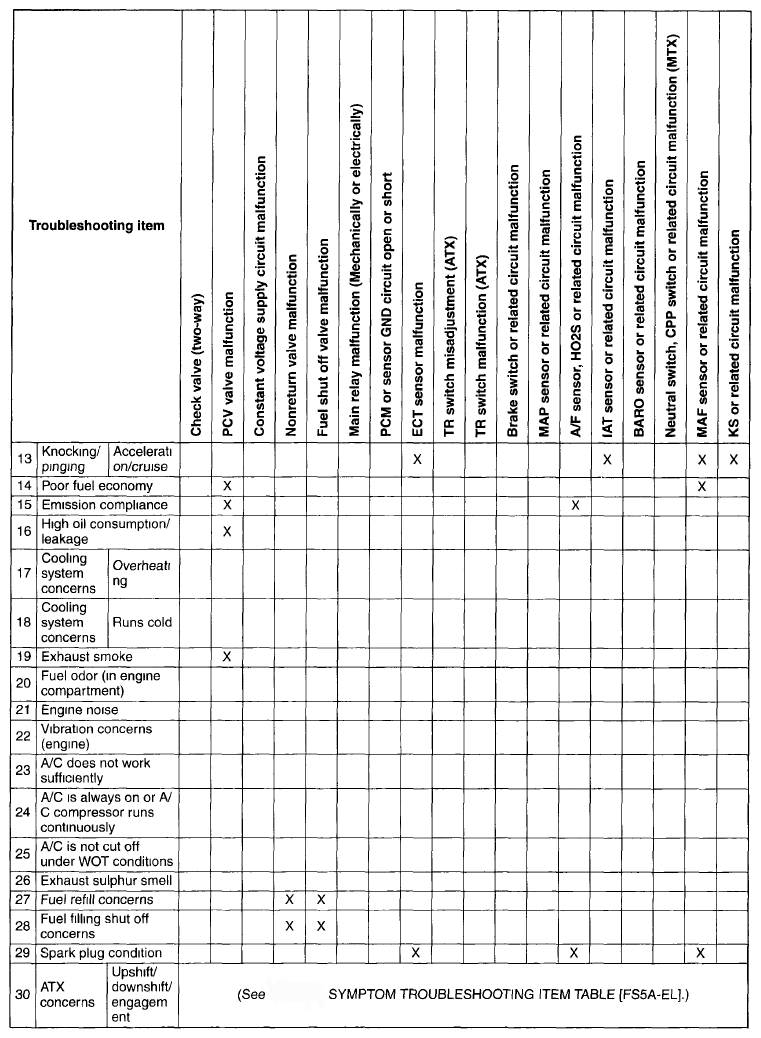

Fig 4: Quick Diagnostic Chart (4 Of 16)

Courtesy of MAZDA MOTORS CORP.

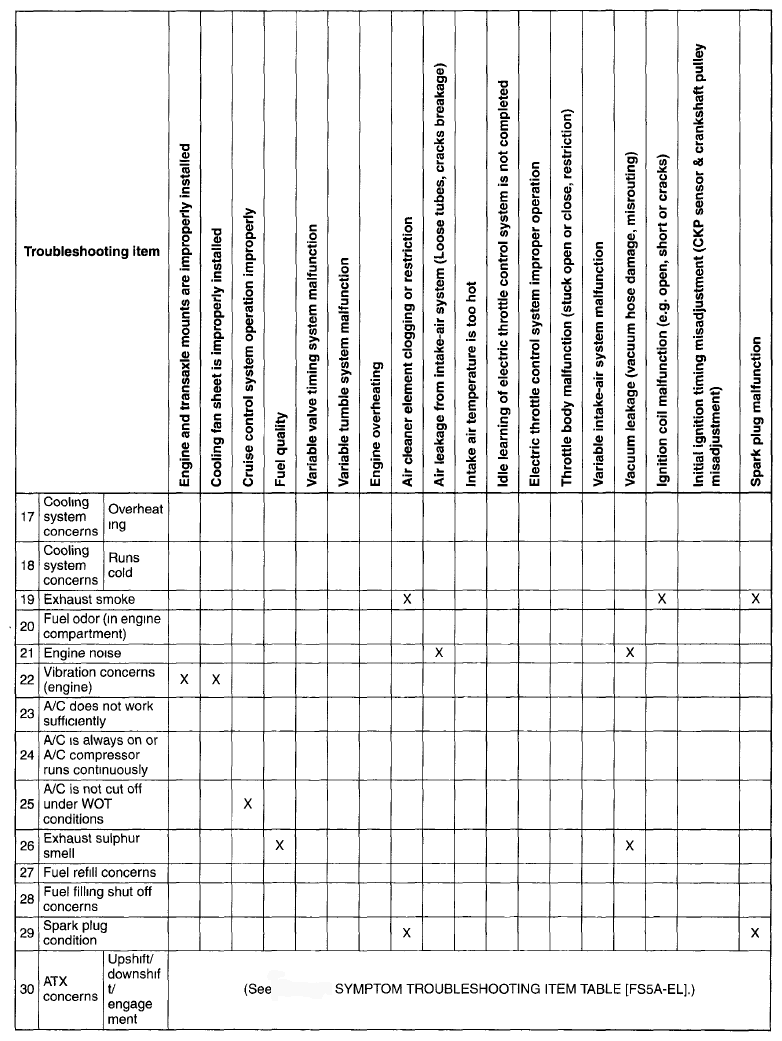

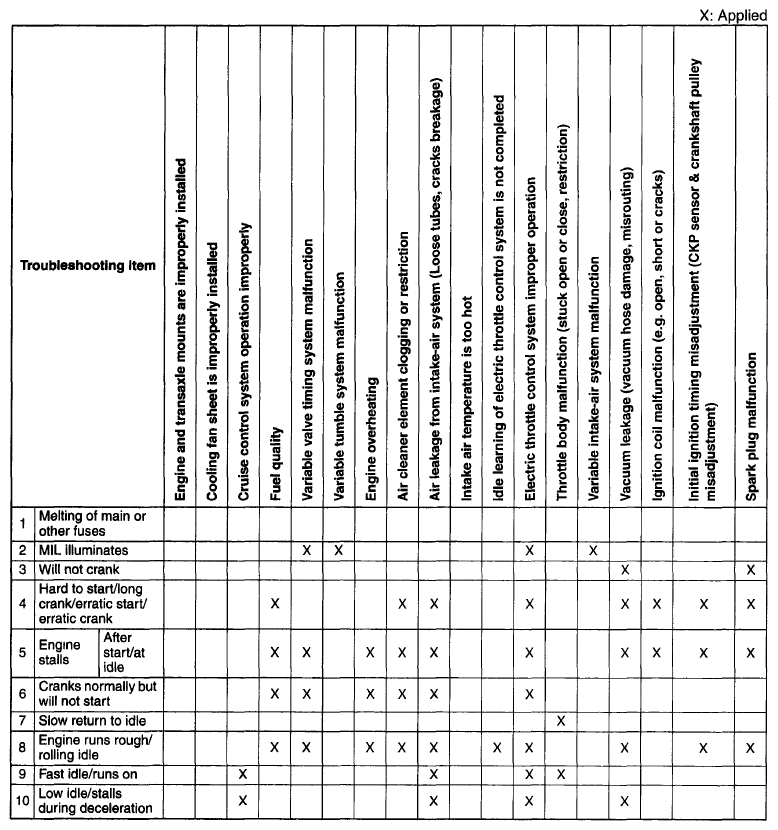

Fig 5: Quick Diagnostic Chart (5 Of 16)

Courtesy of MAZDA MOTORS CORP.

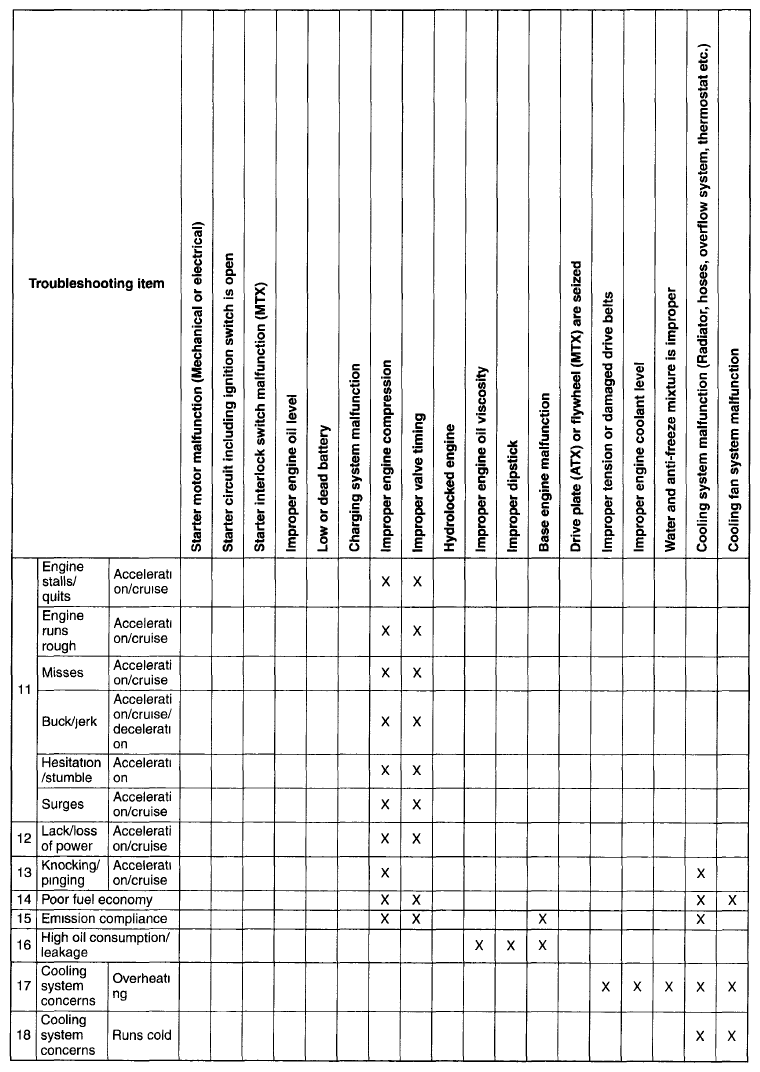

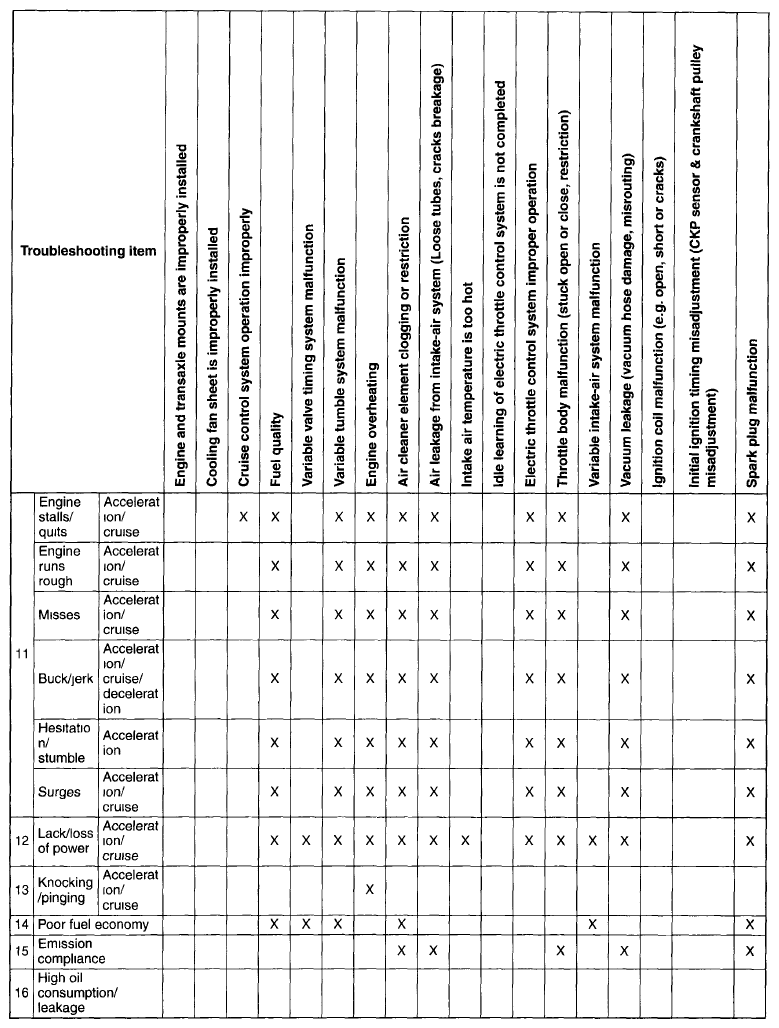

Fig 6: Quick Diagnostic Chart (6 Of 16)

Courtesy of MAZDA MOTORS CORP.

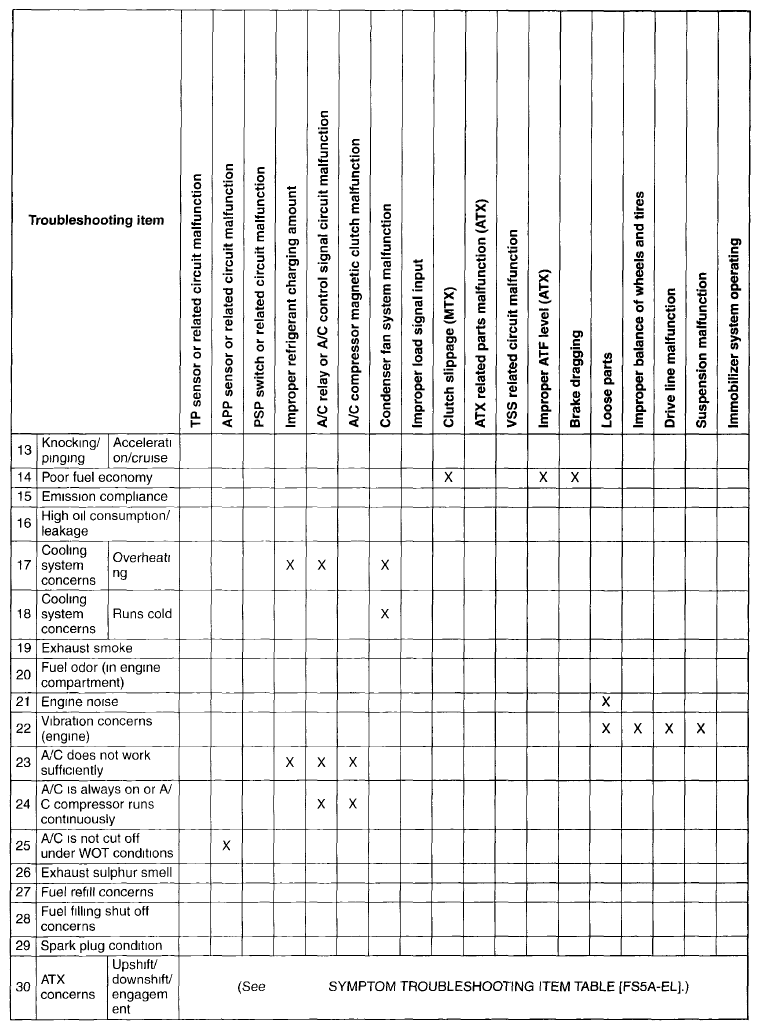

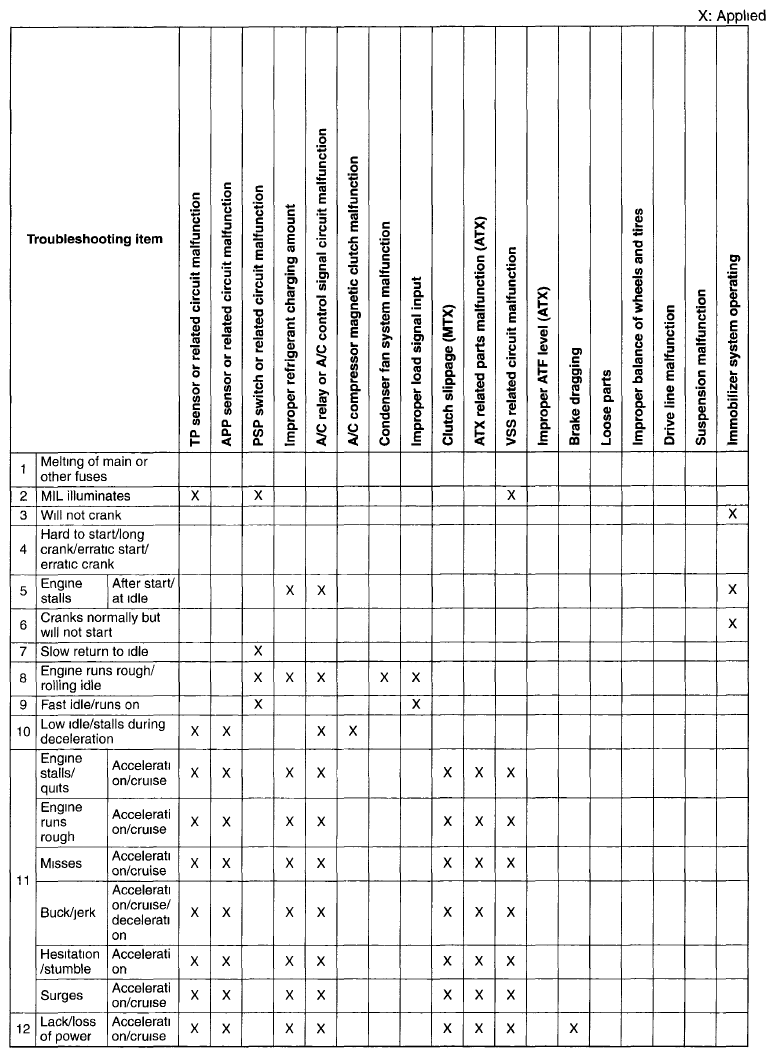

Fig 7: Quick Diagnostic Chart (7 Of 16)

Courtesy of MAZDA MOTORS CORP.

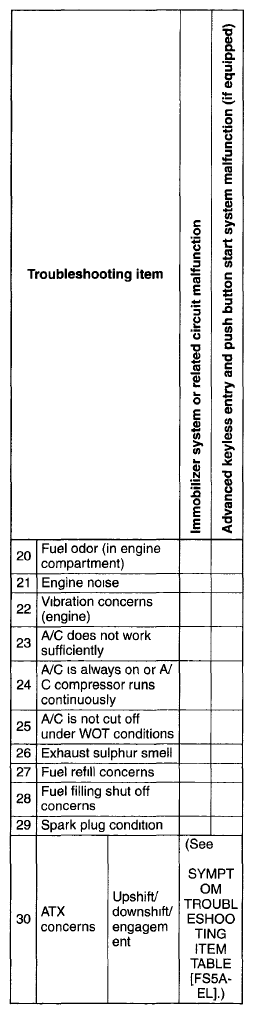

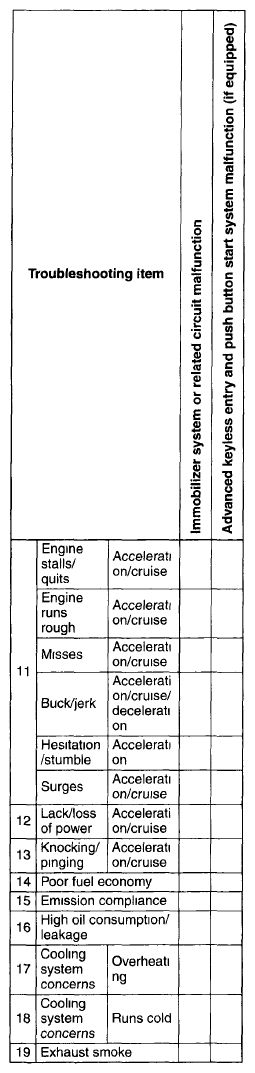

Fig 8: Quick Diagnostic Chart (8 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 9: Quick Diagnostic Chart (9 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 10: Quick Diagnostic Chart (10 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 11: Quick Diagnostic Chart (11 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 12: Quick Diagnostic Chart (12 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 13: Quick Diagnostic Chart (13 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 14: Quick Diagnostic Chart (14 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 15: Quick Diagnostic Chart (15 Of 16)

Courtesy of MAZDA MOTORS CORP.

Fig 16: Quick Diagnostic Chart (16 Of 16)

Courtesy of MAZDA MOTORS CORP.
