No. 1 Melting Of Main Or Other Fuses [L5]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

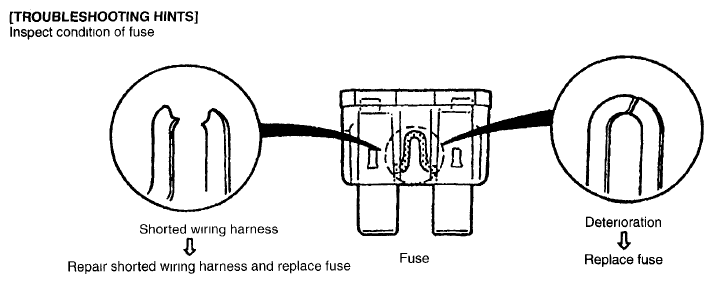

1	MELTING OF MAIN OR OTHER FUSES
Courtesy of MAZDA MOTORS CORP.
Damaged fuse	Related wiring harness
MAIN	MAIN fuse BTN fuse ROOM fuse FAN fuse IG KEY2 fuse Generator
BTN	BTN fuse ROOM fuse
ROOM	ROOM fuse DLC-2
FAN	FAN fuse Fan control module
IG KEY2	IG KEY2 fuse Starter relay
FUEL	FUEL fuse Fuel pump unit
ST SIG	ST SIG fuse Starter relay
EGI INJ	EGI INJ fuse Fuel injector No 1 Fuel injector No 2 Fuel injector No. 3 Fuel injector No. 4
ENG+B	ENG+B fuse PCM Canister vent solenoid valve
PCM	PCM fuse PCM
ENGINE IG	ENGINE IG fuse Ignition coil No. 1 Ignition coil No 2 Ignition coil No. 3 Ignition coil No 4
O2 SSR	O2 SSR fuse HO2S
ENGINE	ENGINE fuse Variable tumble solenoid valve OCV Variable intake air solenoid valve EGR valve Purge solenoid valve A/F sensor MAF/IAT sensor
