DTC C0040:13/C0040:64 [Abs/TCS]: Notes
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DETECTION CONDITION AND POSSIBLE CAUSE
| C0040:13 |
Brake switch |
| C0040:64 |
| DETECTION CONDITION |
C0040:13
- Detect the open circuit in brake switch circuit for 0.3 s.
C0040:64
- Detect brake switch ON signal for 15 min or more
when driving at vehicle speed of 15 km/h {9.3 mph} or more.
|
| POSSIBLE CAUSE |
- STOP 10 A fuse malfunction
- Connector or terminal malfunction

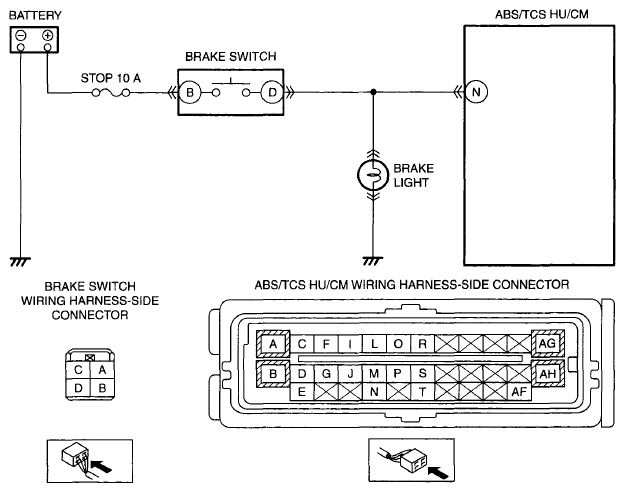

- Short to ground or open circuit in wiring harness between brake switch terminal B and battery positive terminal
- Open circuit in wiring harness between brake switch terminal D and ABS/TCS HU/CM terminal N
- Short to power supply in wiring harness between brake switch terminal D and ABS/TCS HU/CM terminal N
- Brake switch malfunction
- ABS/TCS HU/CM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
