Ground Illumination Light Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
Insert a small tape-wrapped flathead screwdriver into the service hole indicated in the figure.

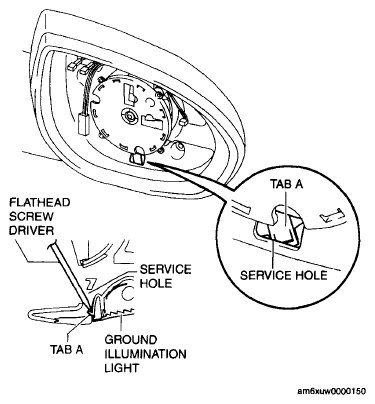

Fig 1: Identifying Ground Illumination Light Service Hole
Courtesy of MAZDA MOTORS CORP.
While pressing tab A in the direction of the arrow (1), pull the ground illumination light in the direction of the arrow (2).
Remove the ground illumination light by pulling it in the direction of the arrow (3).

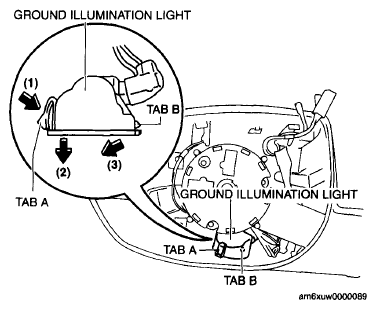

Fig 2: Pulling Ground Illumination Light
Courtesy of MAZDA MOTORS CORP.
Pull the connectors in the direction of the arrow shown in the figure and disconnect them.

Fig 3: Pulling Connectors

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
