Vehicles with DRL

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

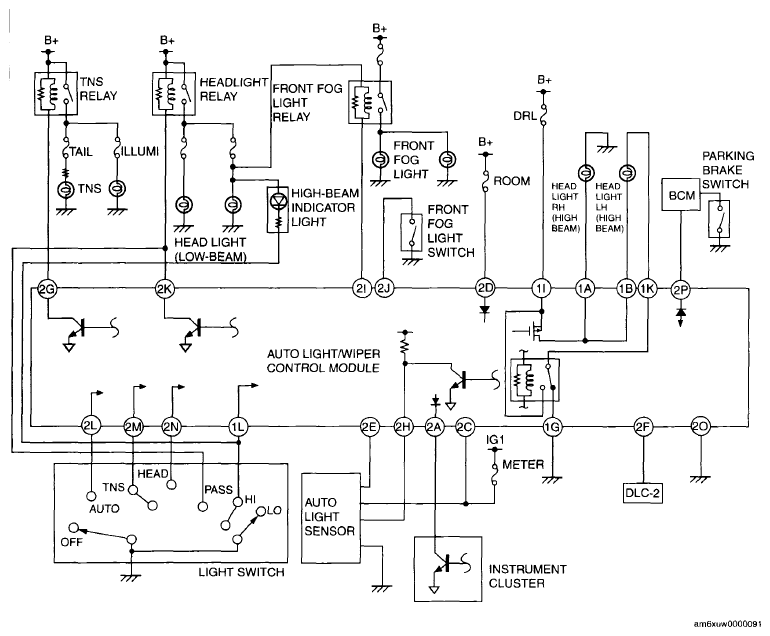

Fig 1: DRL & Auto Light System Wiring Diagram (Vehicles With DRL)

Courtesy of MAZDA MOTORS CORP.
