Outer Mirror Garnish Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the outer mirror glass from the outer mirror. (See OUTER MIRROR GLASS REMOVAL .)

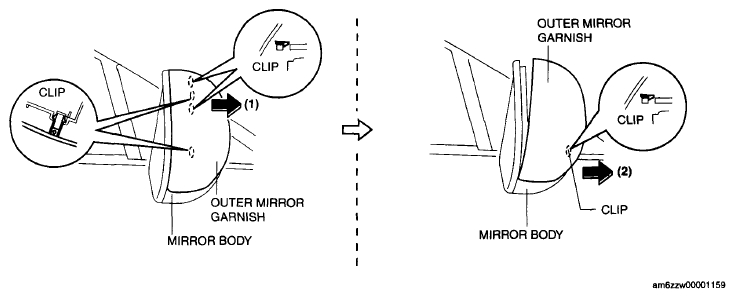

- Grasp the upper side of the outer mirror garnish and remove it by pulling it in the direction of the arrow.
- Install in the reverse order of removal.
