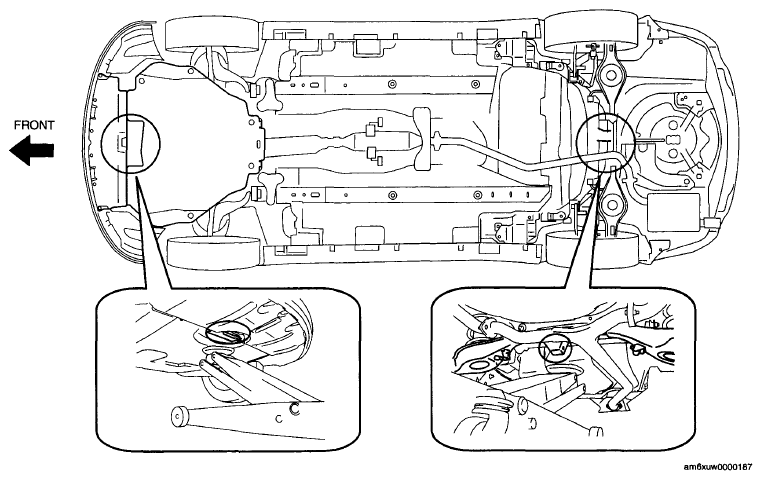

Jacking Positions
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Improperly jacking a vehicle is dangerous. The vehicle can slip off the jack and cause serious injury. Use only the correct front and rear jacking points and block the wheels.
- Use safety stands to support the vehicle after it has been lifted.
- Near the center of the front crossmember.NOTE:
- To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack.
- Near the center of the rear crossmember.
Front
Rear
