Section 543 (General Information)
>>
How To Use This Manual
>>
Procedures for Use
>>
Using the symptom troubleshooting
Using the symptom troubleshooting
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Symptom troubleshooting shows diagnostic procedures, inspection methods, and proper action to be taken for each trouble symptom.

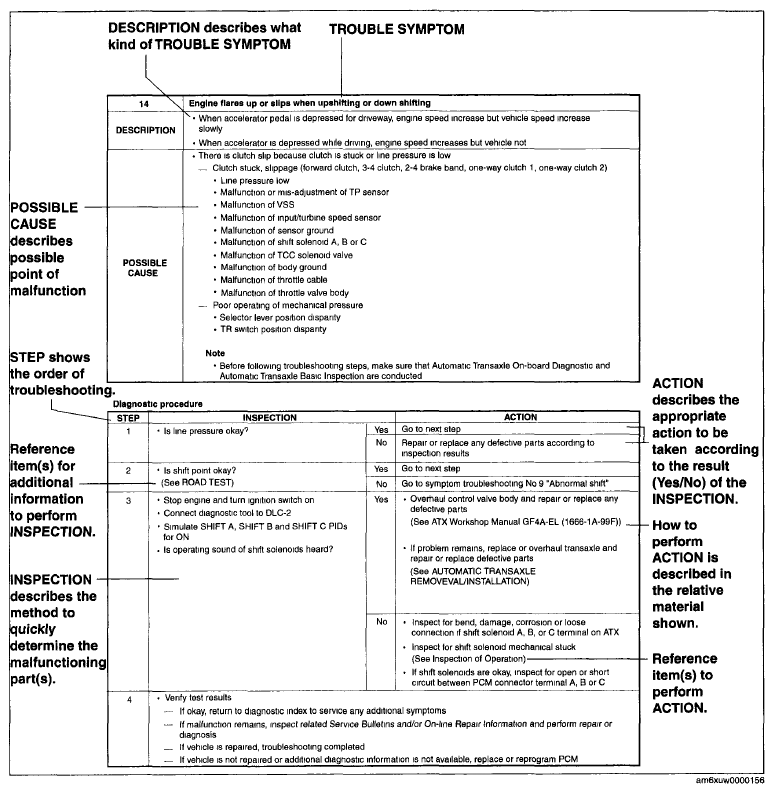

Fig 1: Identifying Symptom Troubleshooting Chart Components
Courtesy of MAZDA MOTORS CORP.
