Using the quick diagnosis chart

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

The chart lists the relation between the symptom and the cause of the malfunction.
The chart is effective in quickly narrowing down the relation between symptom and cause of the malfunction. It also specifies a range of common causes when multiple malfunction symptoms occur.
The appropriate diagnostic inspection relating to a malfunction cause as specified by the symptoms can be selected by looking down the diagnostic inspection column of the chart.

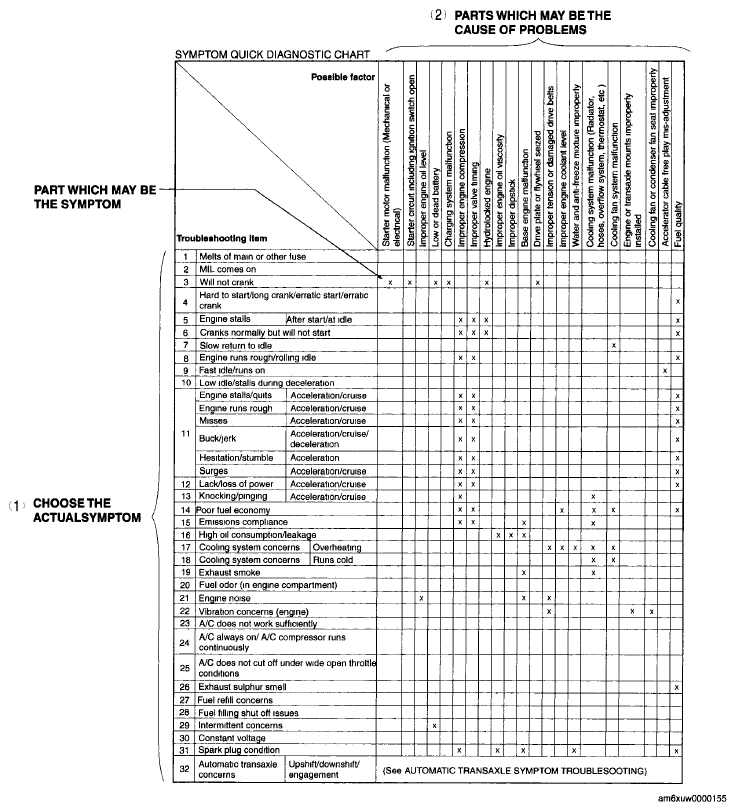

Fig 1: Identifying Quick Diagnosis Chart Components

Courtesy of MAZDA MOTORS CORP.
