Using the DTC troubleshooting flow
WARNING:
This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC troubleshooting flow shows diagnostic procedures, inspection methods, and proper action to take for each DTC.

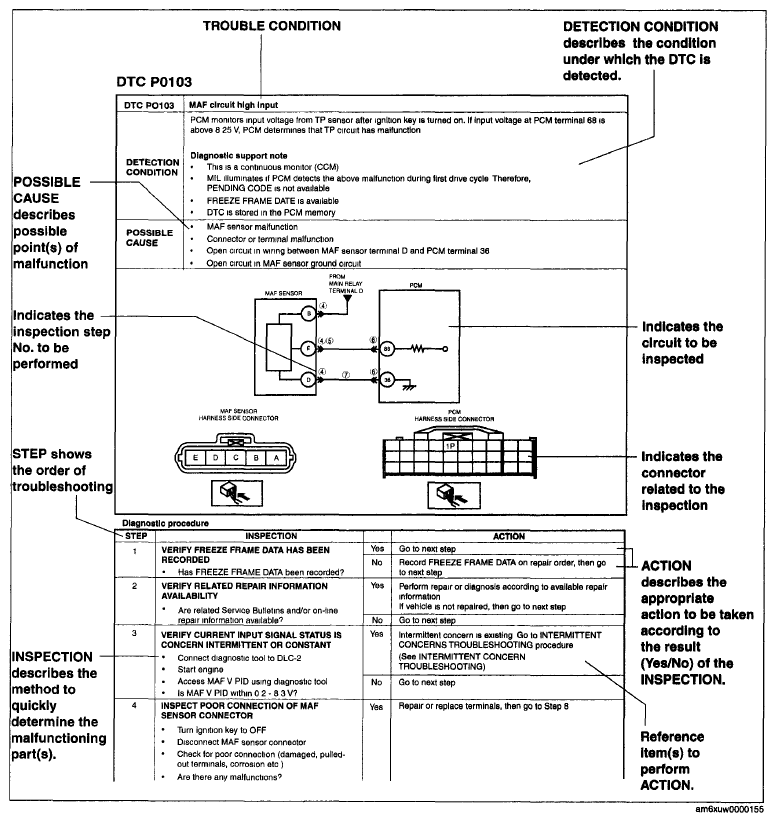

Fig 1: Identifying DTC Troubleshooting Flow Chart Components
Courtesy of MAZDA MOTORS CORP.
