Dashboard Under Cover Removal/Installation

  1. Detach clip A, pin B and guide C by pulling them in the direction of the arrow (1), (2).

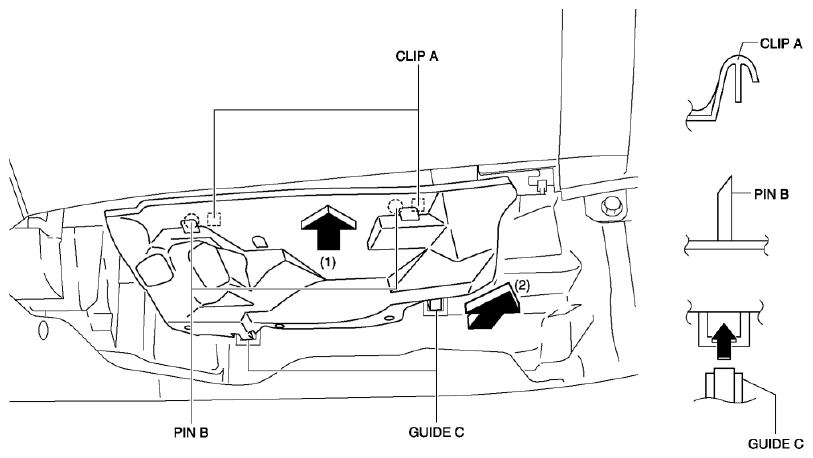

    Fig 1: Dashboard Under Cover Clips
    G08144721
  2. Remove the dashboard under cover.
  3. Install in the reverse order of removal.
