Center Panel Lower Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
  3. Pull the center panel lower in the direction of the arrow(1) shown in the figure while detaching clips B.

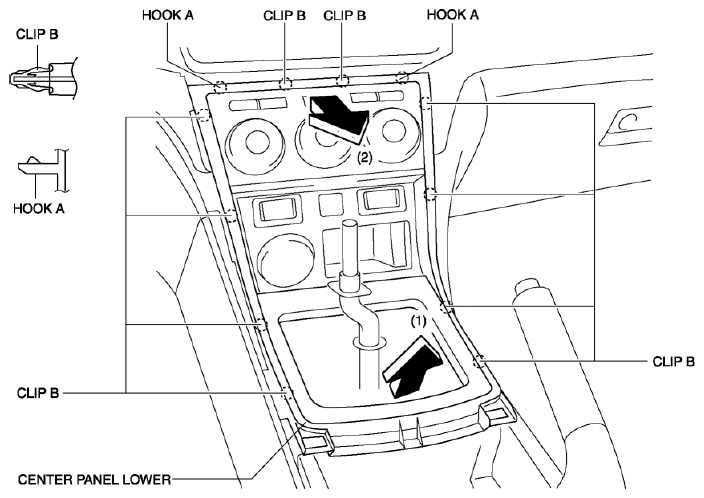

    Fig 1: Center Panel Lower Clips
    G08144710
  4. Pull the center panel lower in the direction of the arrow(2) shown in the figure and remove it while detaching clips B and hooks A.
  5. Disconnect the PAD indicator light bulb connector. (Vehicles with PAD indicator light bulb)
  6. Disconnect the seat warmer switch connector. (Vehicles with seat warmer)
  7. Disconnect the advanced keyless entry and push button start connector. (Vehicles with advanced keyless entry and push button start system)
  8. Disconnect the accessory socket (front) connector.
  9. Disconnect the cigarette lighter socket connector. (Arab Gulf Cooperation Council)
  10. Install in the reverse order of removal.
