A-Pillar Trim Removal/Installation
- Partially peel back the seaming welt.

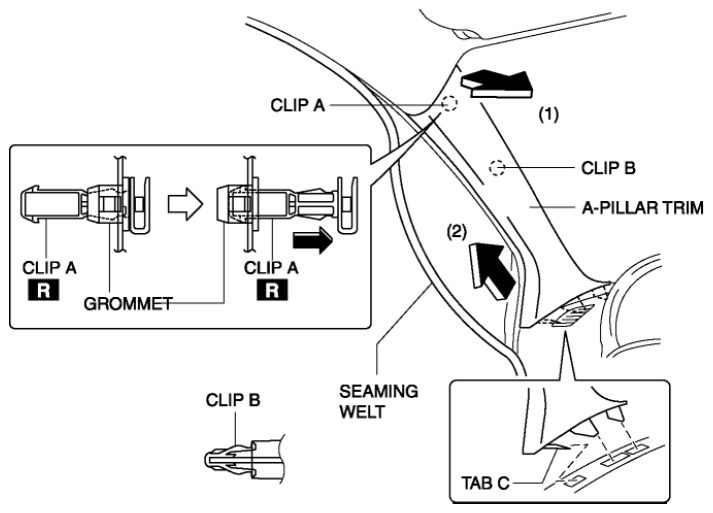

- Pull the upper end of the A-pillar trim in the direction of the arrow (1), (2) shown in the figure and remove clip A, B and tab C.
CAUTION:
- When pulling out the A-pillar trim, be careful not to damage the tabs.
- When installing the A-pillar, Install the new clip A to the A-pillar trim in advance.
- Install in the reverse order of removal.
