Splash Shield Removal/Installation

  1. Remove the screw A, D, cap nut B and fastener C.
  2. Pull the splash shield in the direction of the arrow shown in the figure then remove the tab E and F.

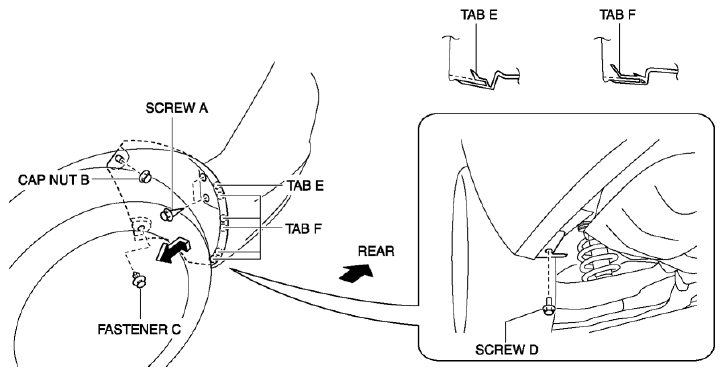

    Fig 1: Splash Shield Screws And Tabs
    G08144689
  3. Install in the reverse order of removal.
