Aerodynamic Under Cover No.1 Removal/Installation

  1. Remove the bolts A and clip B.

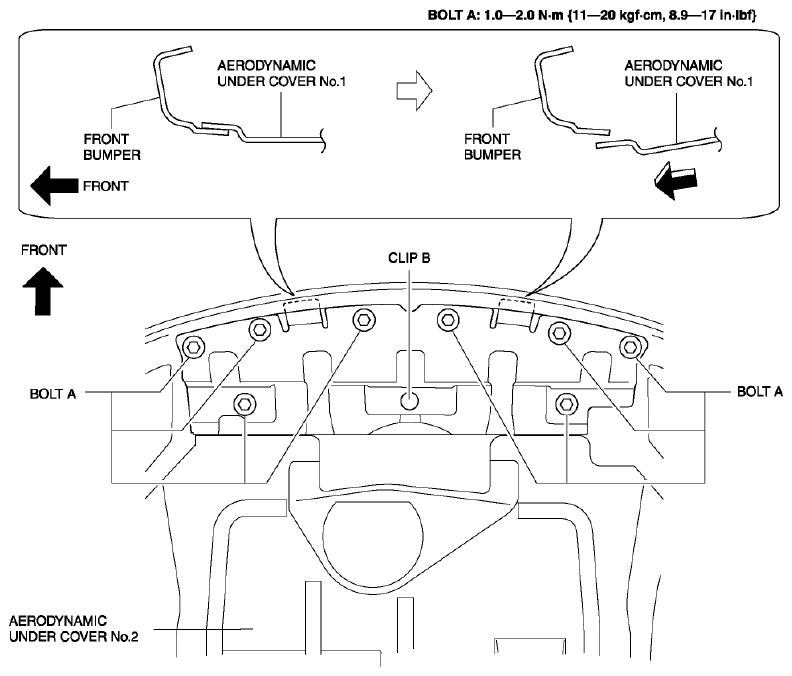

    Fig 1: Aerodynamic Under Cover No.1 And Bolts With Torque Specification
    G08144686
  2. Set aside the aerodynamic under cover No.1 from the front bumper, then remove the aerodynamic under cover No.1 in the direction of the arrow shown in the figure.
    CAUTION:
    • Be careful not to damage the aerodynamic under cover No.1 during removal.
  3. Install in the reverse order of removal.
