Cruise Control Switch Inspection [MZI 3.7 V6]

Disconnect the negative battery cable and wait for 1 min or more . (See BATTERY REMOVAL/INSTALLATION [MZI 3.7 V6] .)
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
Disconnect the clock spring connector (part wiring harness-side). (See STEERING SWITCH REMOVAL/INSTALLATION .)

Inspect for resistance and continuity between clock spring (part wiring harness-side) terminals B-C using a tester.

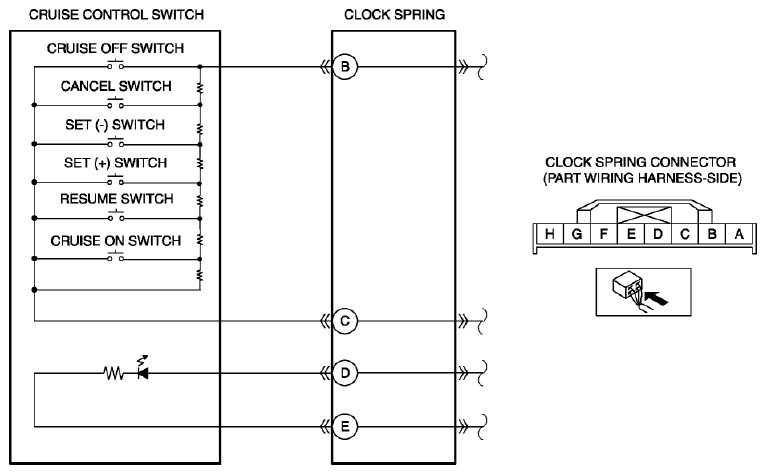

Fig 1: Cruise Control Switch Circuit Diagram (MZI 3.7 V6)

G08140751

If not as specified, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)

Switch condition	Resistance (ohm)
Cruise OFF switch held at on	Continuity
CANCEL switch held at on	118.8-121.2
SET (-) switch held at on	297.0-303.0
SET (+) switch held at on	594.0-606.0
RESUME switch held at on	1,098.9-1,121.1
Cruise ON switch held at on	2,088.9-2,131.1
Neutral	4,266.9-4,353.1

Apply battery positive voltage to clock spring (part wiring harness-side) terminal D, and connect terminal E to ground.

Fig 2: Applying Battery Positive Voltage To Clock Spring
Verify that the LED illuminates.
- If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
