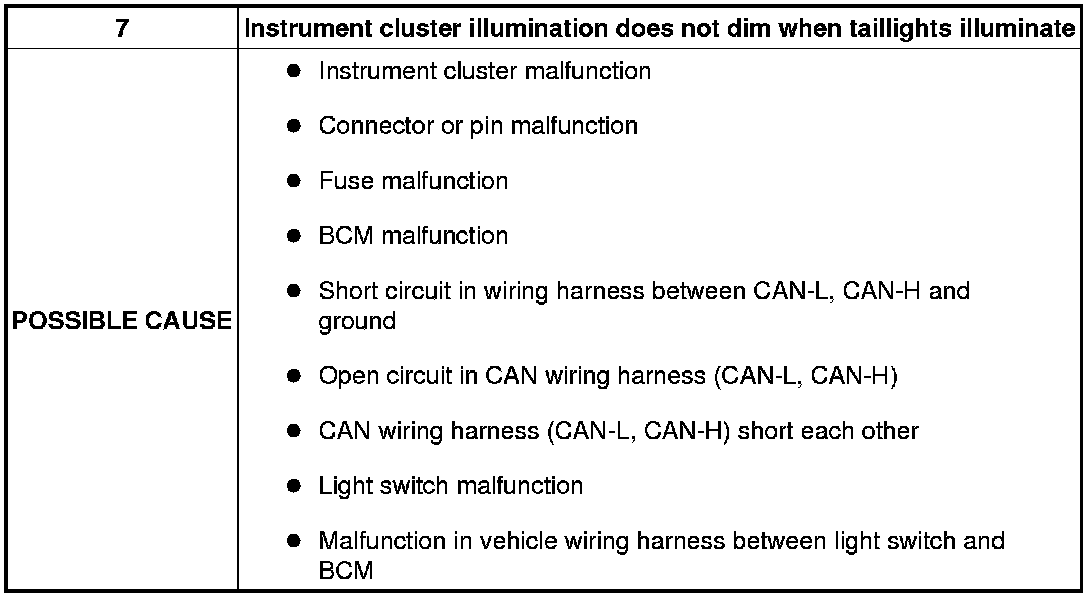

No. 7 Instrument Cluster Illumination Does Not Dim When Taillights Illuminate (Without Malfunction Warning Light)





NO. 7 INSTRUMENT CLUSTER ILLUMINATION DOES NOT DIM WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER (WITHOUT MALFUNCTION WARNING LIGHT)]

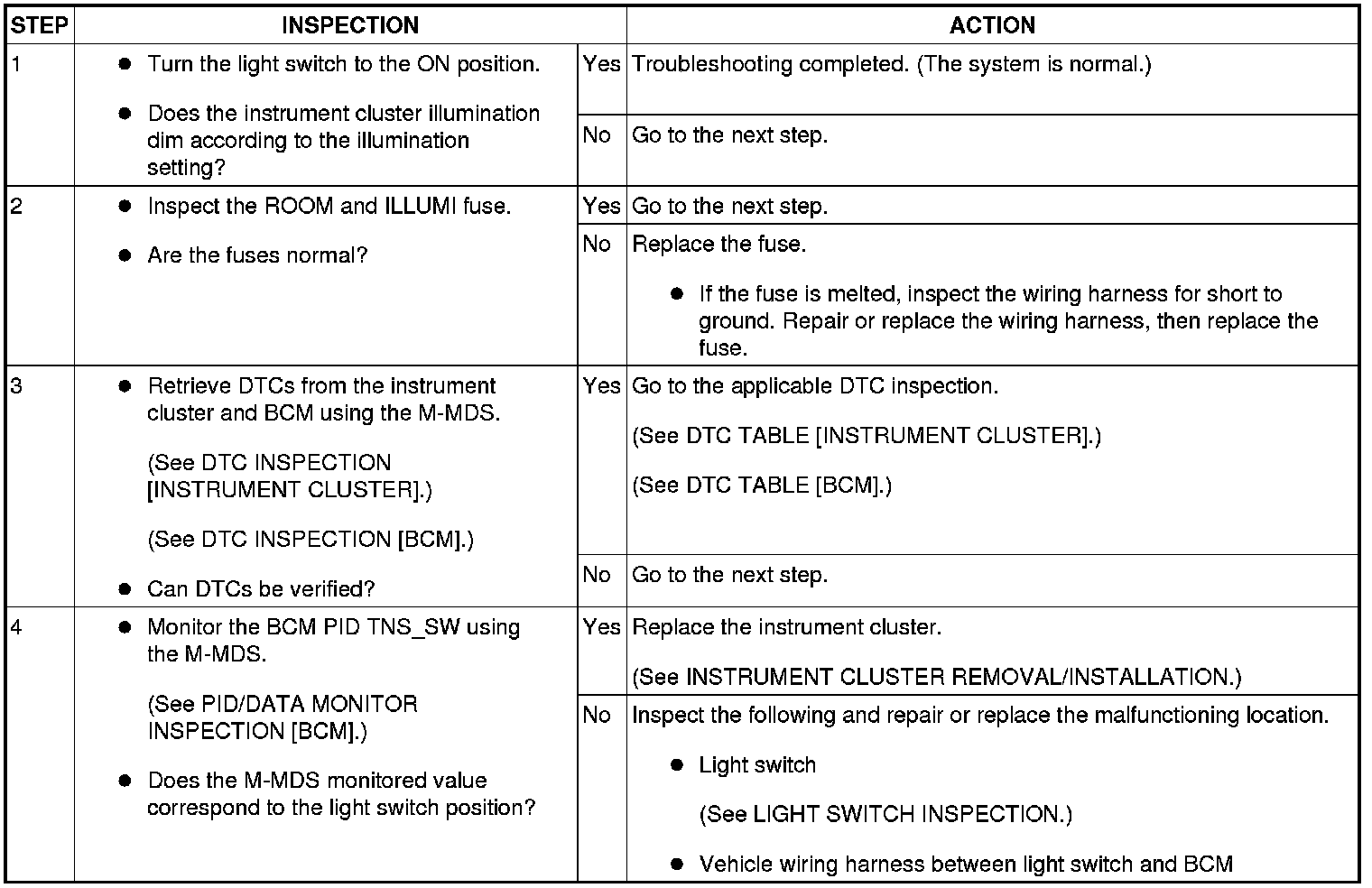

Diagnostic procedure
