Home >> Mazda >> 2012 >> 6 V6-3.7L >> Repair and Diagnosis >> Diagrams >> Components >> Rear Harness-Short Cord >> Air Bag System (Includes Pre-Tensioner Seat Belt Information)

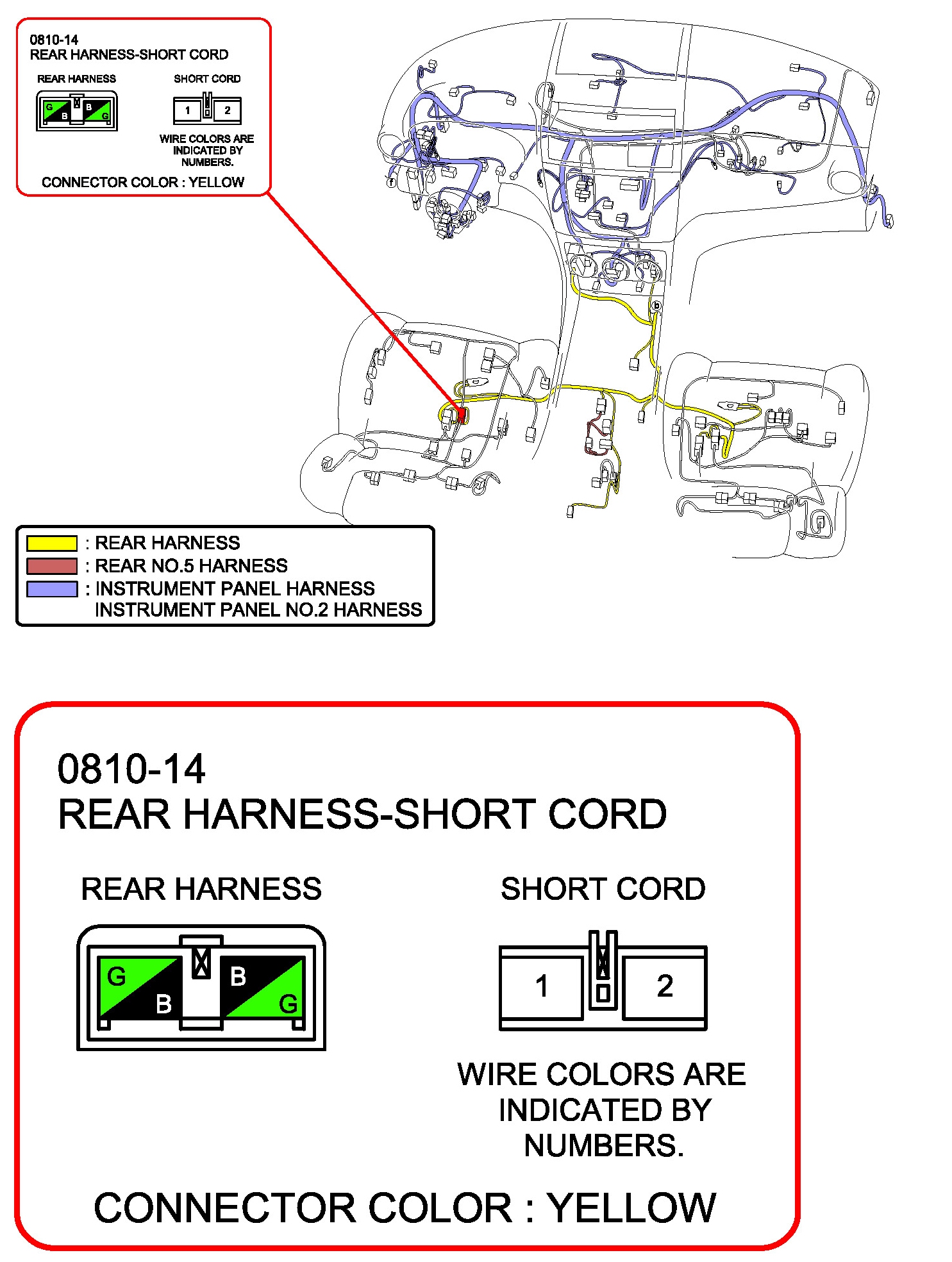

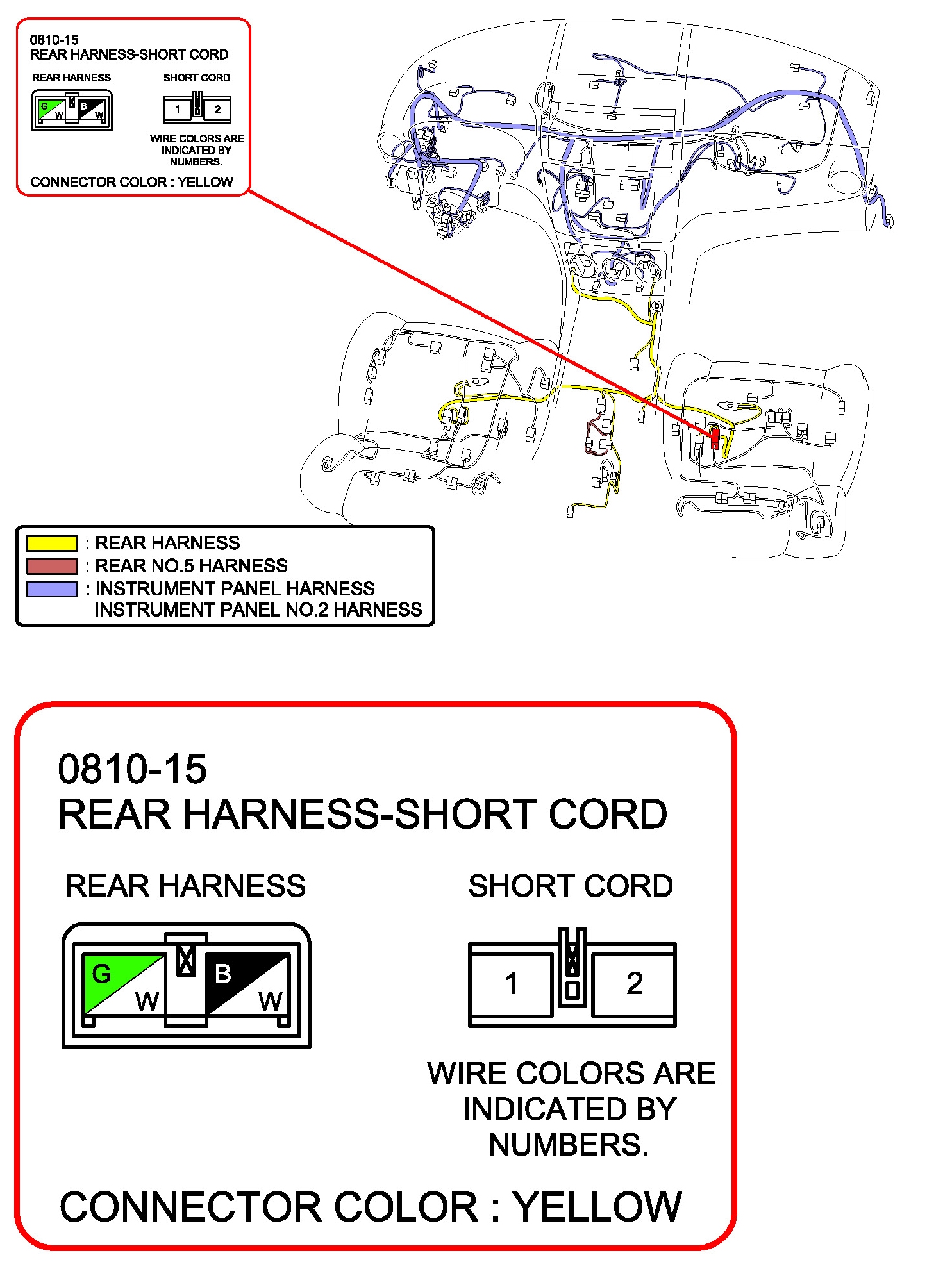

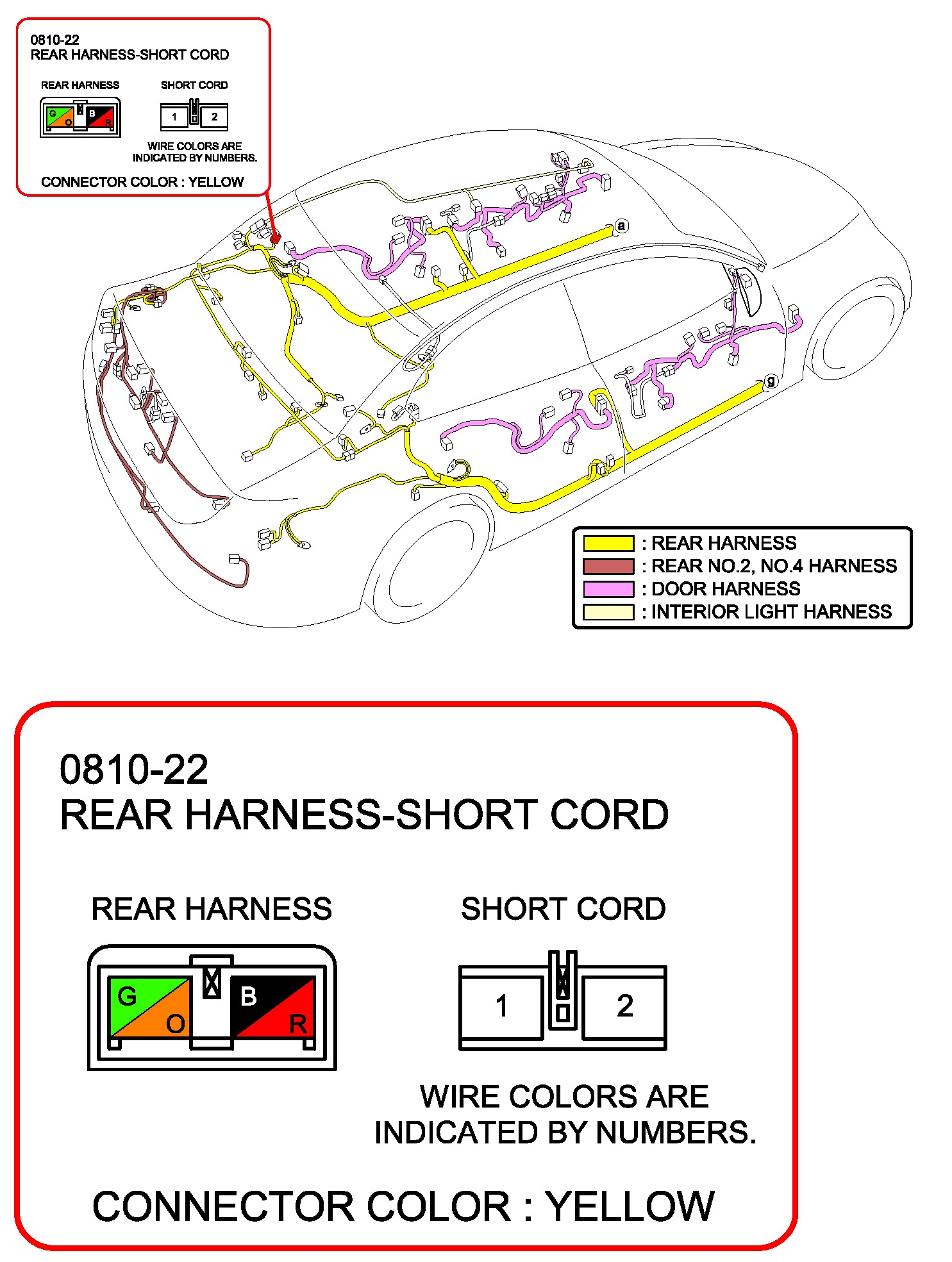

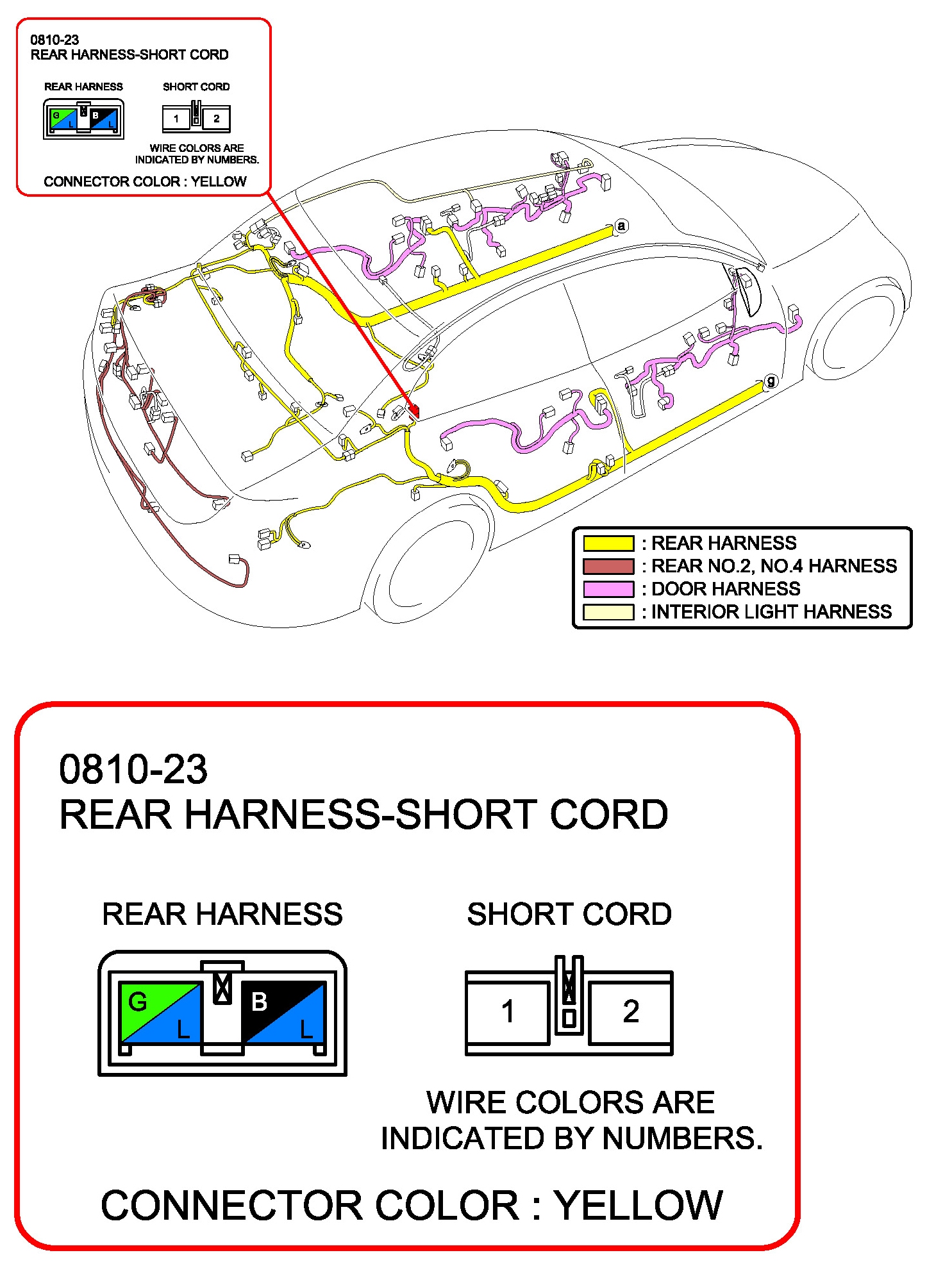

Air Bag System (Includes Pre-Tensioner Seat Belt Information)
