Clutch Pedal Position Sensor / Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 2.5]

1. Verify that the CPP switch is installed properly.

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect CPP switch connector. Service and Repair

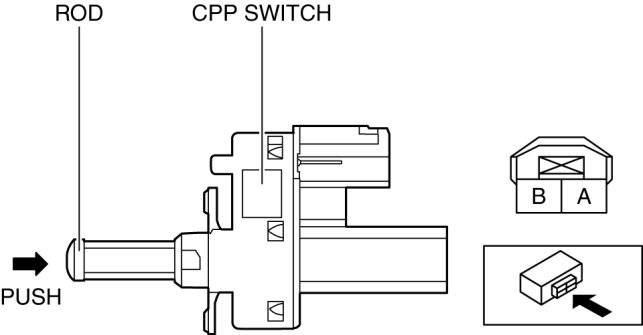

4. Inspect for continuity between CPP switch terminals A and B.






- If not as specified, replace the CPP switch. Service and Repair

CPP switch specification
