Full-Auto Air Conditioner

EVAPORATOR TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER]

1. Set the fan speed MAX HI.

2. Set the temperature control at MAX COLD (Turn the left).

3. Turn the A/C switch off.

4. Set the RECIRCULATE mode.

5. Close all doors and windows.

6. Wait for 5 min.

7. Remove the glove compartment. Service and Repair

8. Disconnect the evaporator temperature sensor connector. Full-Auto Air Conditioner

9. Measure the temperature at the blower inlet.

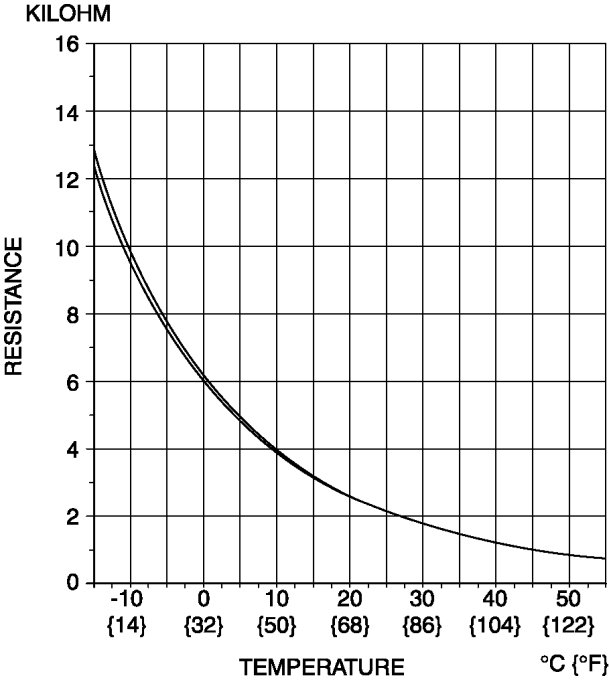

10. Measure the resistance between terminals of the evaporator temperature sensor.






- If the resistance is not as shown in the graph, replace the evaporator temperature sensor.
