No. 6 Instrument Cluster Does Not Illuminate When Taillights Illuminate (Without Malfunction Warning Light)

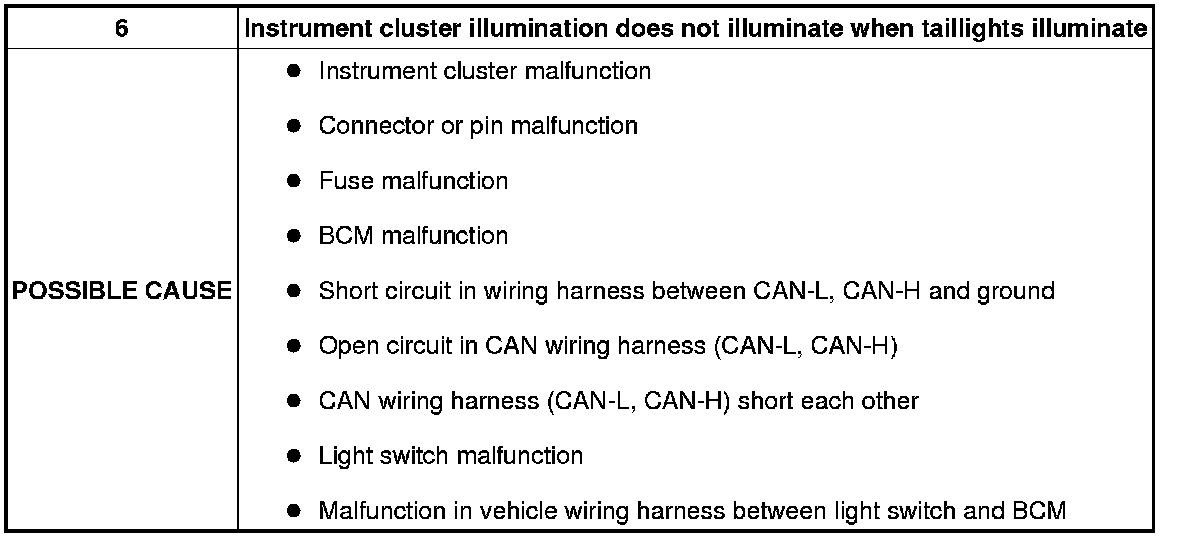

NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER (WITHOUT MALFUNCTION WARNING LIGHT)]

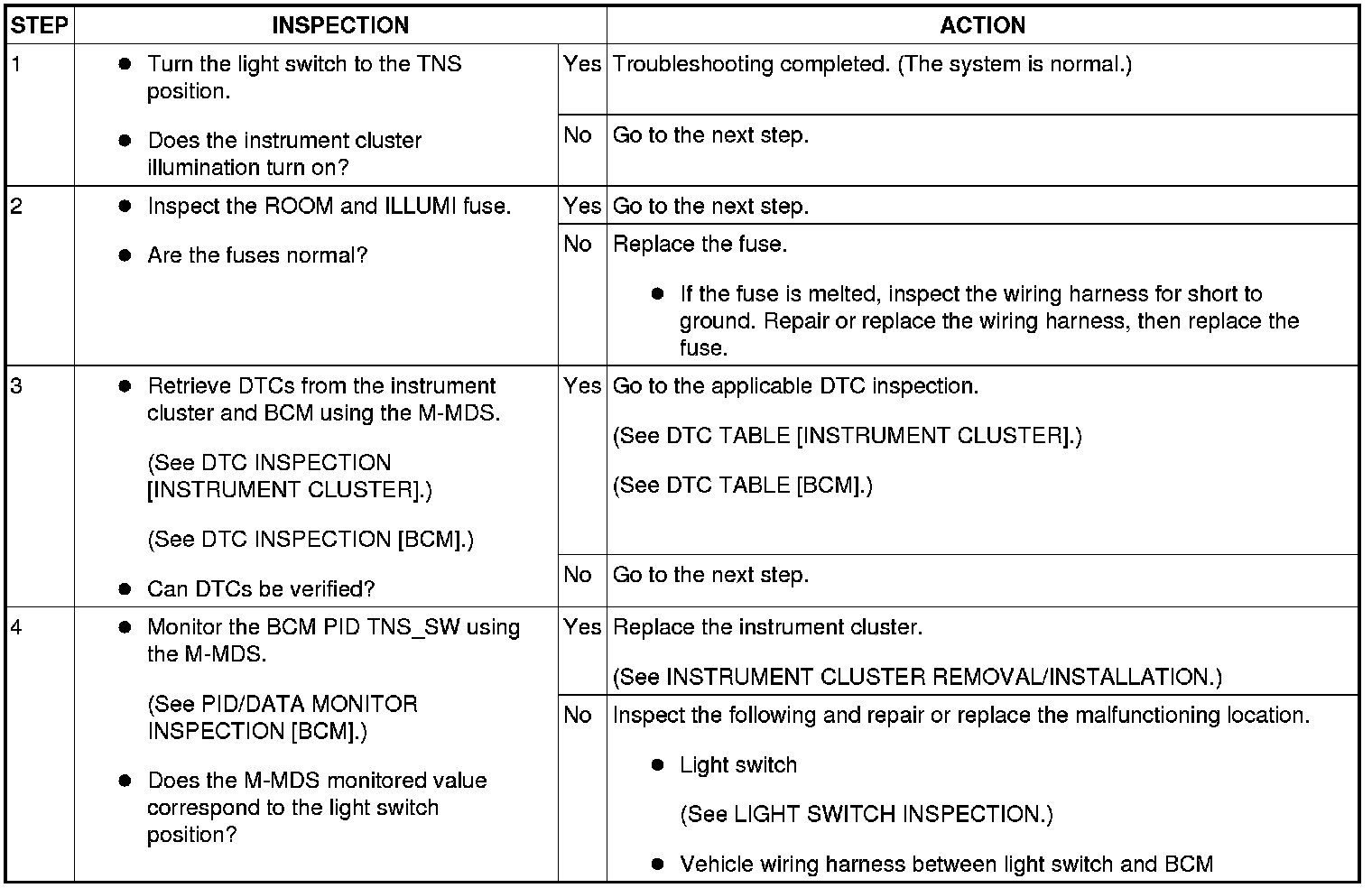

Diagnostic procedure
