No. 2 All Meters and Gauges Do Not Operate (Without Malfunction Warning Light)





NO. 2 ALL METERS AND GAUGES DO NOT OPERATE [INSTRUMENT CLUSTER (WITHOUT MALFUNCTION WARNING LIGHT)]

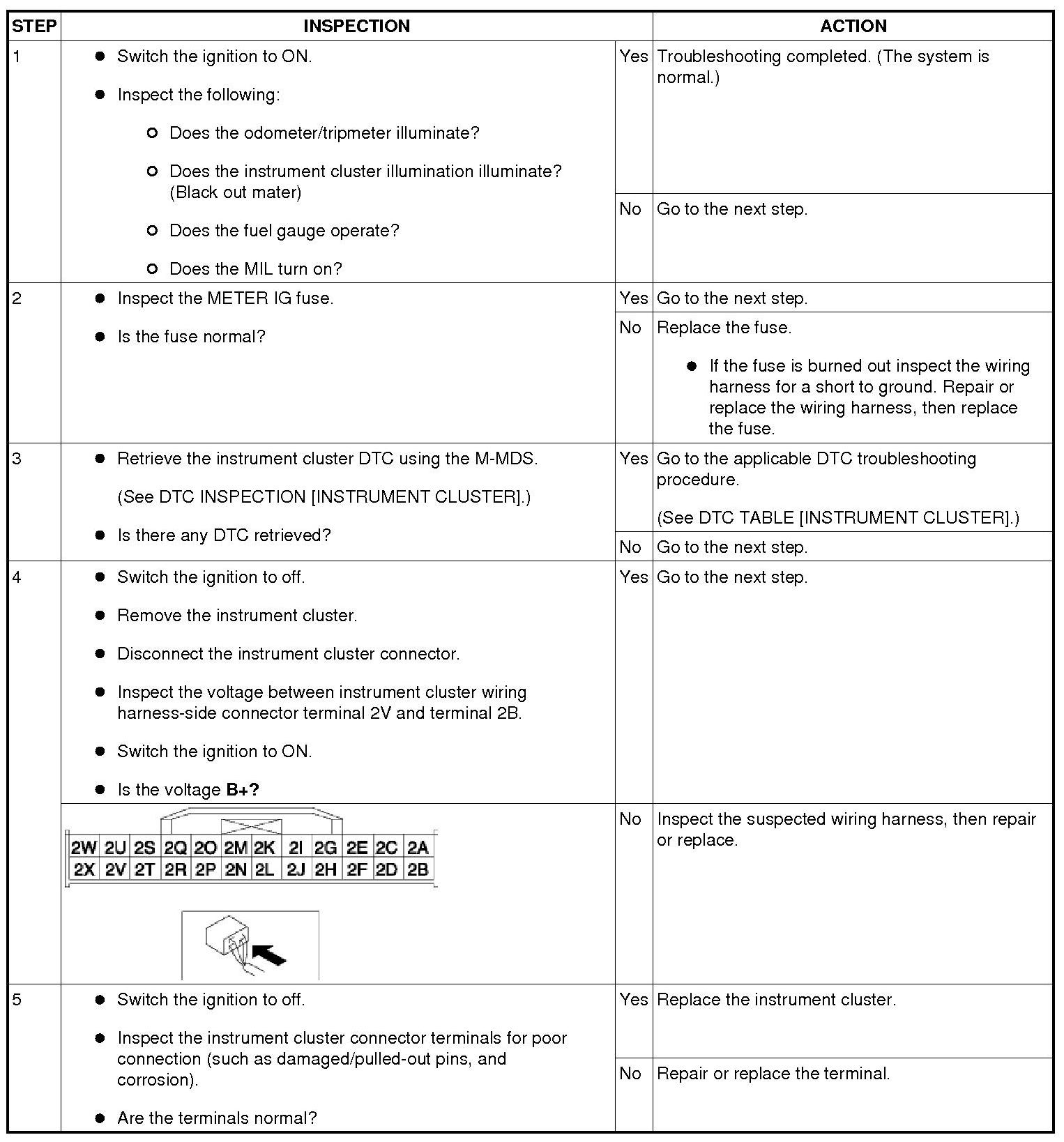

Diagnostic procedure
