No. 1 Fuel Gauge Needle Position Incorrect (Without Malfunction Warning Light)





NO. 1 FUEL GAUGE NEEDLE POSITION INCORRECT [INSTRUMENT CLUSTER (WITHOUT MALFUNCTION WARNING LIGHT)]

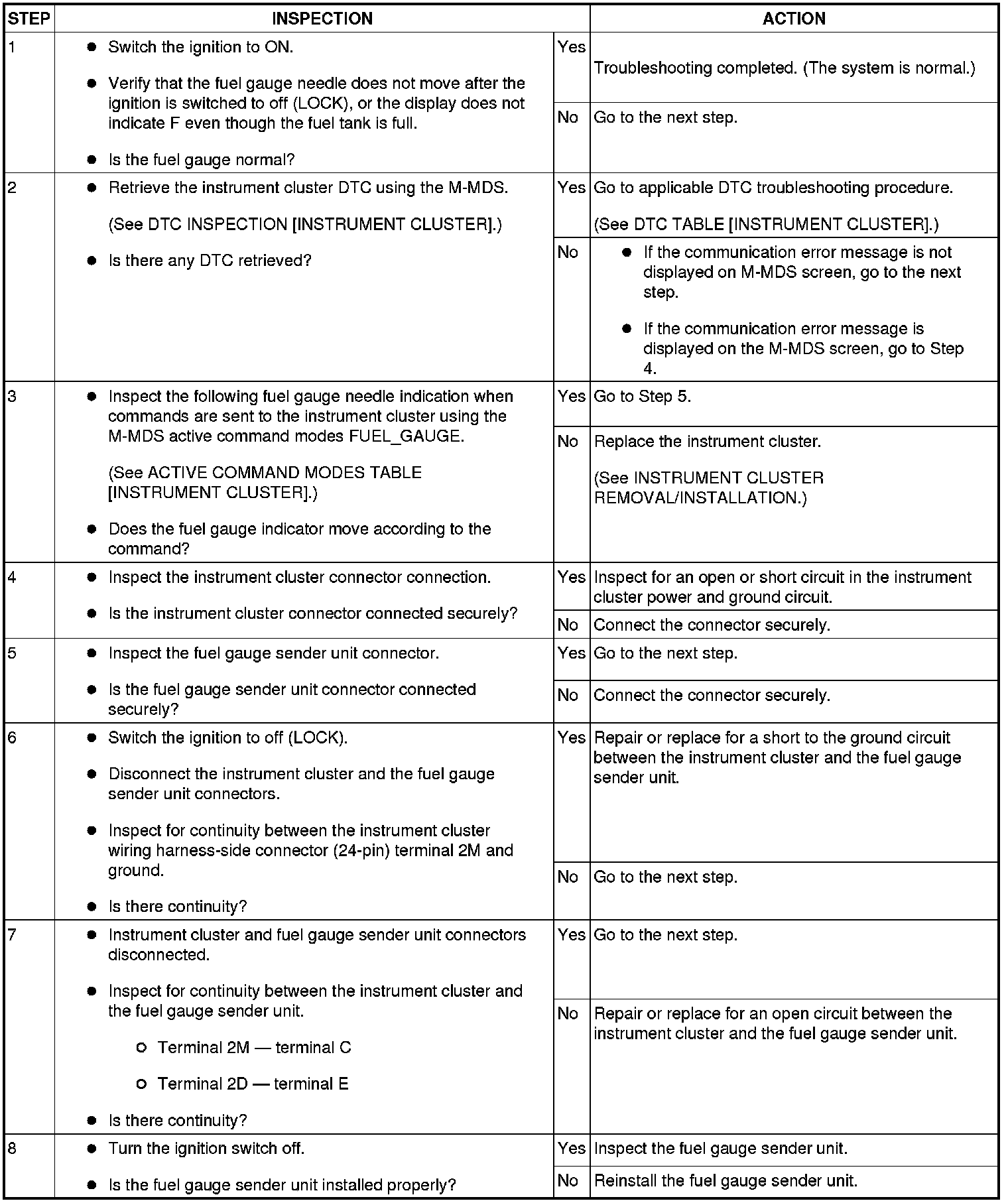

Diagnostic procedure
