No. 7 Instrument Cluster Does Not Dim When Taillights Illuminate (With Malfunction Warning Light)





NO. 7 INSTRUMENT CLUSTER ILLUMINATION DOES NOT DIM WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER (WITH MALFUNCTION WARNING LIGHT)]

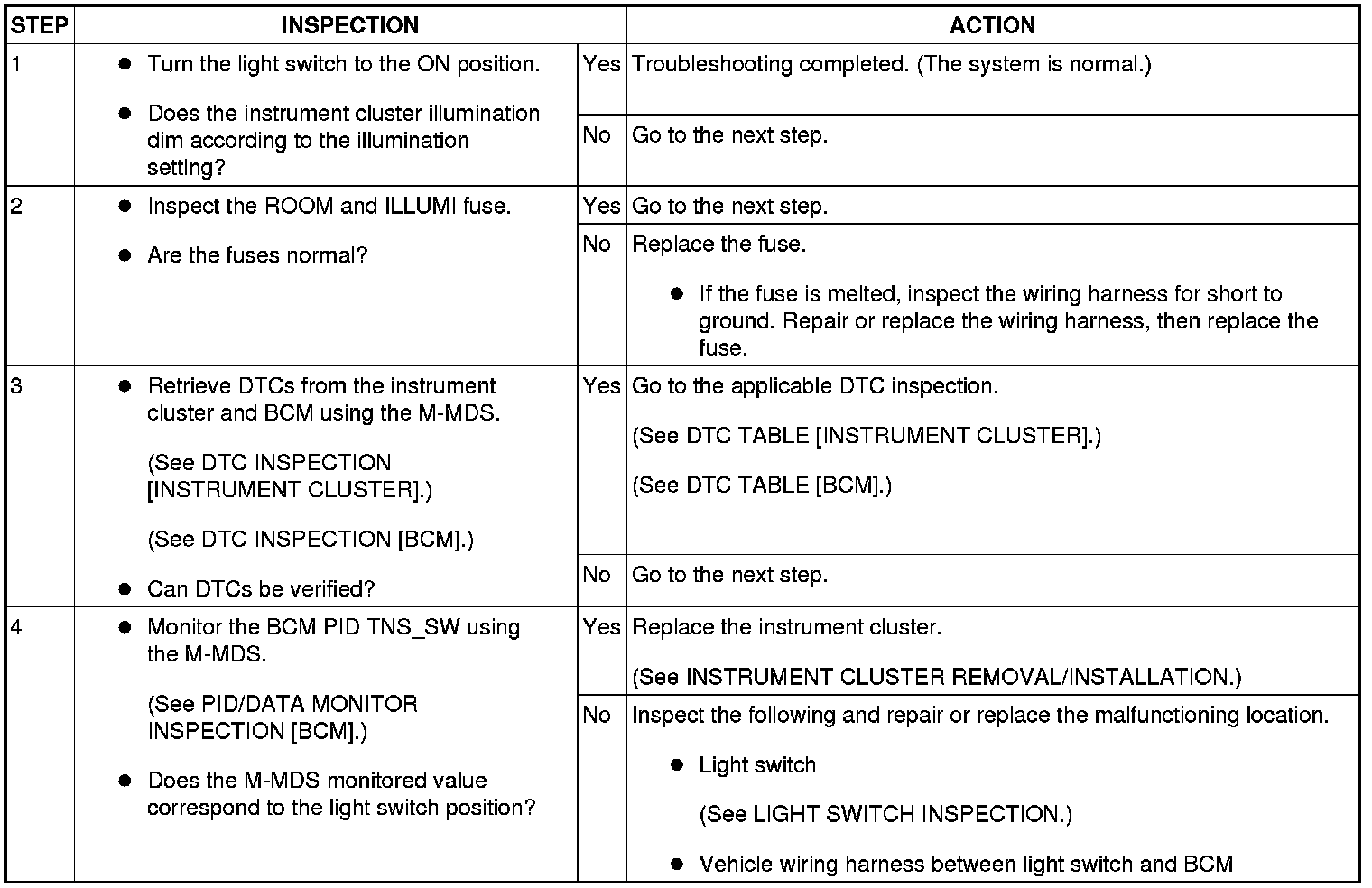

Diagnostic procedure
