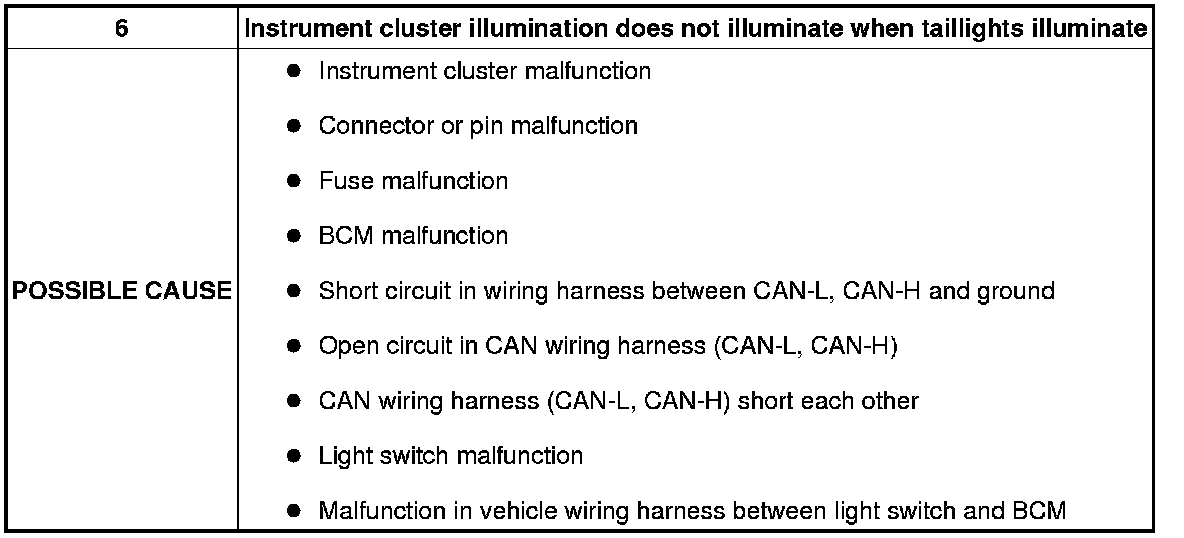

No. 6 Instrument Cluster Does Not Illuminate When Taillights Illuminate (With Malfunction Warning Light)





NO. 6 INSTRUMENT CLUSTER ILLUMINATION DOES NOT ILLUMINATE WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER (WITH MALFUNCTION WARNING LIGHT)]

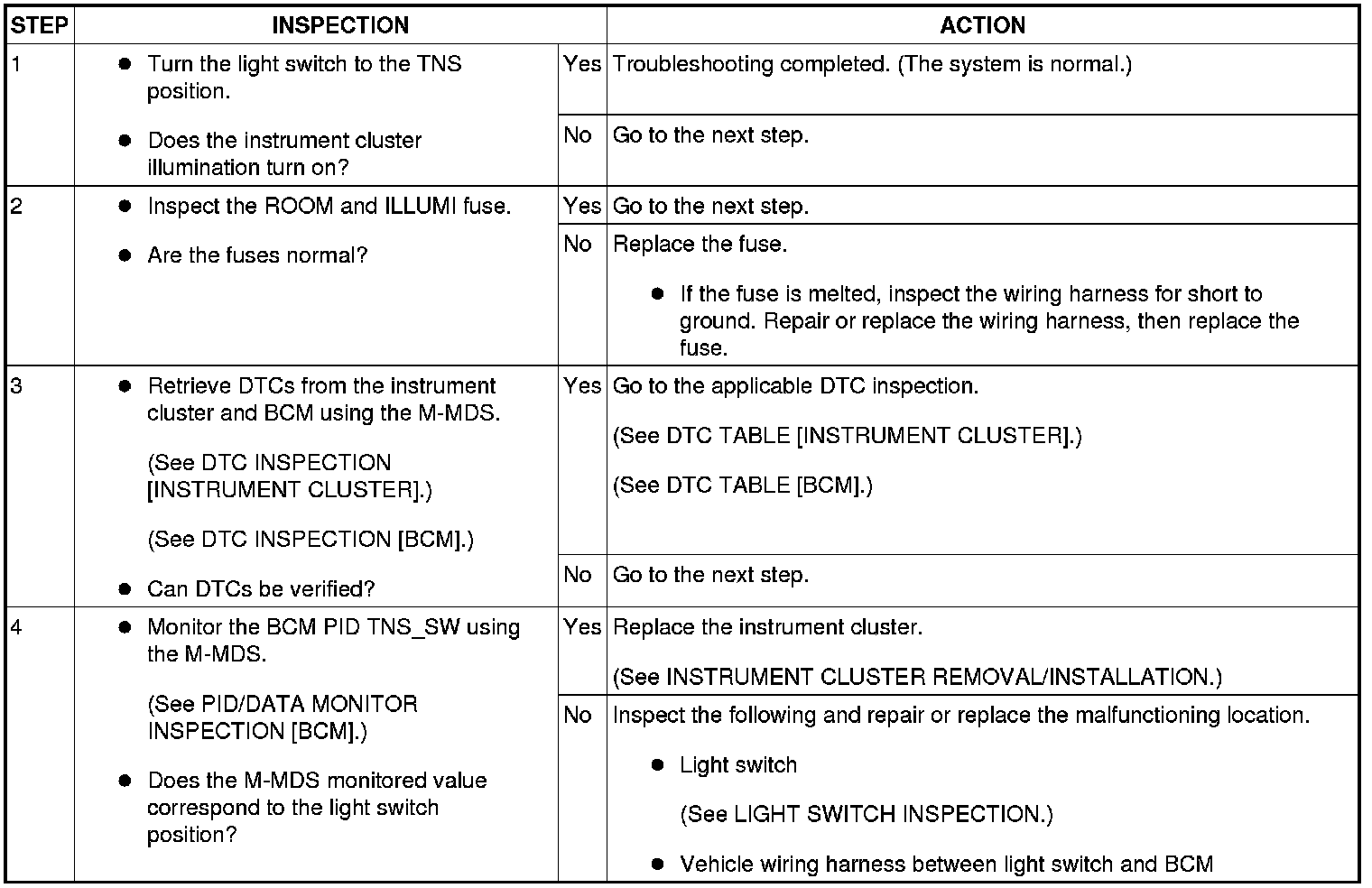

Diagnostic procedure
