Home >> Mazda >> 2012 >> 6 L4-2.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Instrument Cluster (With Malfunction Warning Light) >> No. 5 Brake System Warning Light Illuminates (With Malfunction Warning Light)

No. 5 Brake System Warning Light Illuminates (With Malfunction Warning Light)





NO. 5 BRAKE SYSTEM WARNING LIGHT ILLUMINATES [INSTRUMENT CLUSTER (WITH MALFUNCTION WARNING LIGHT)]

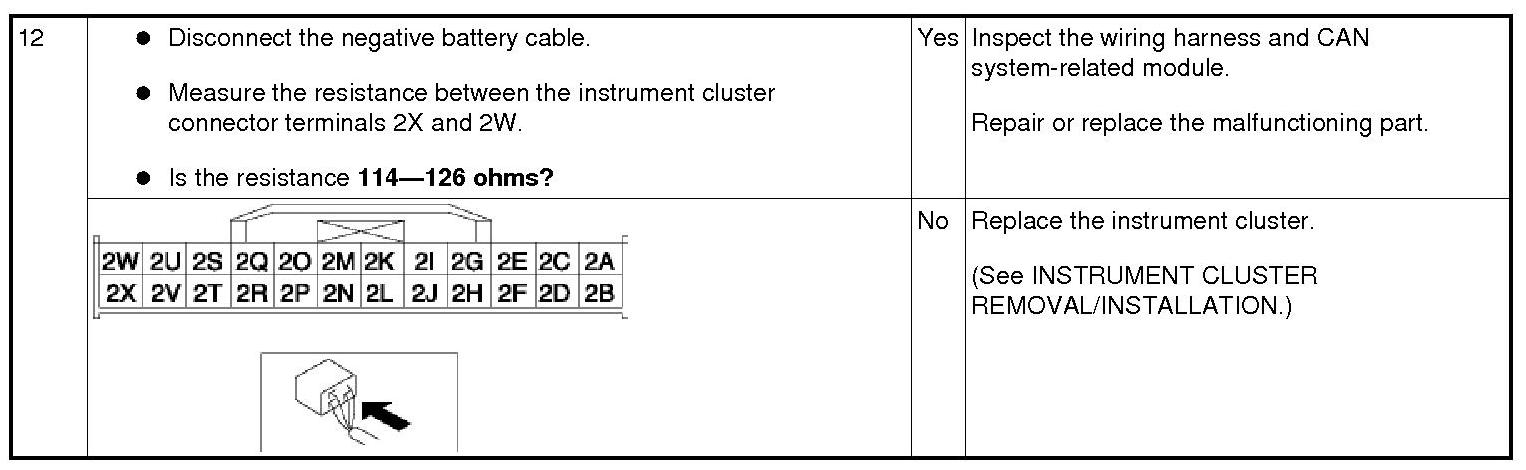

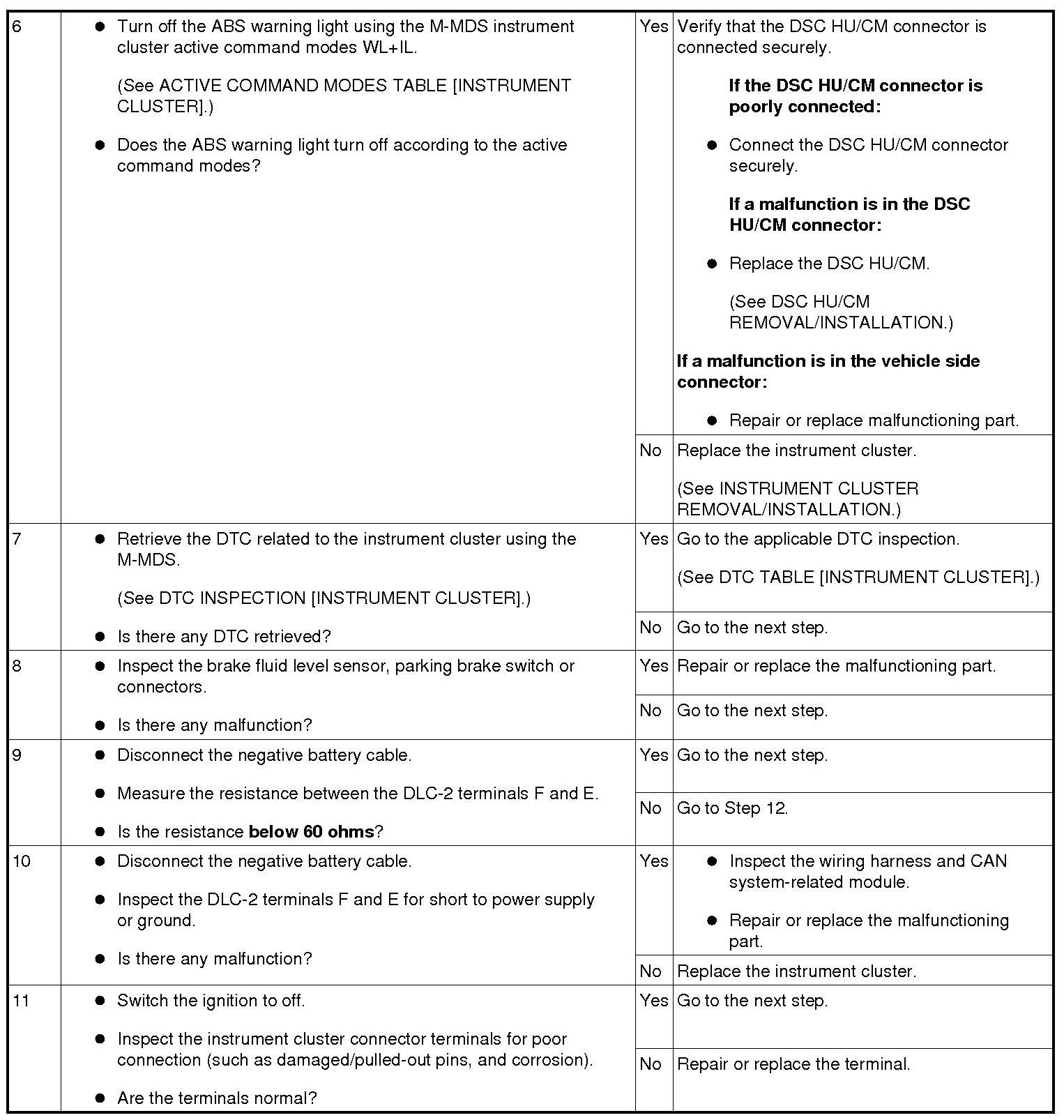

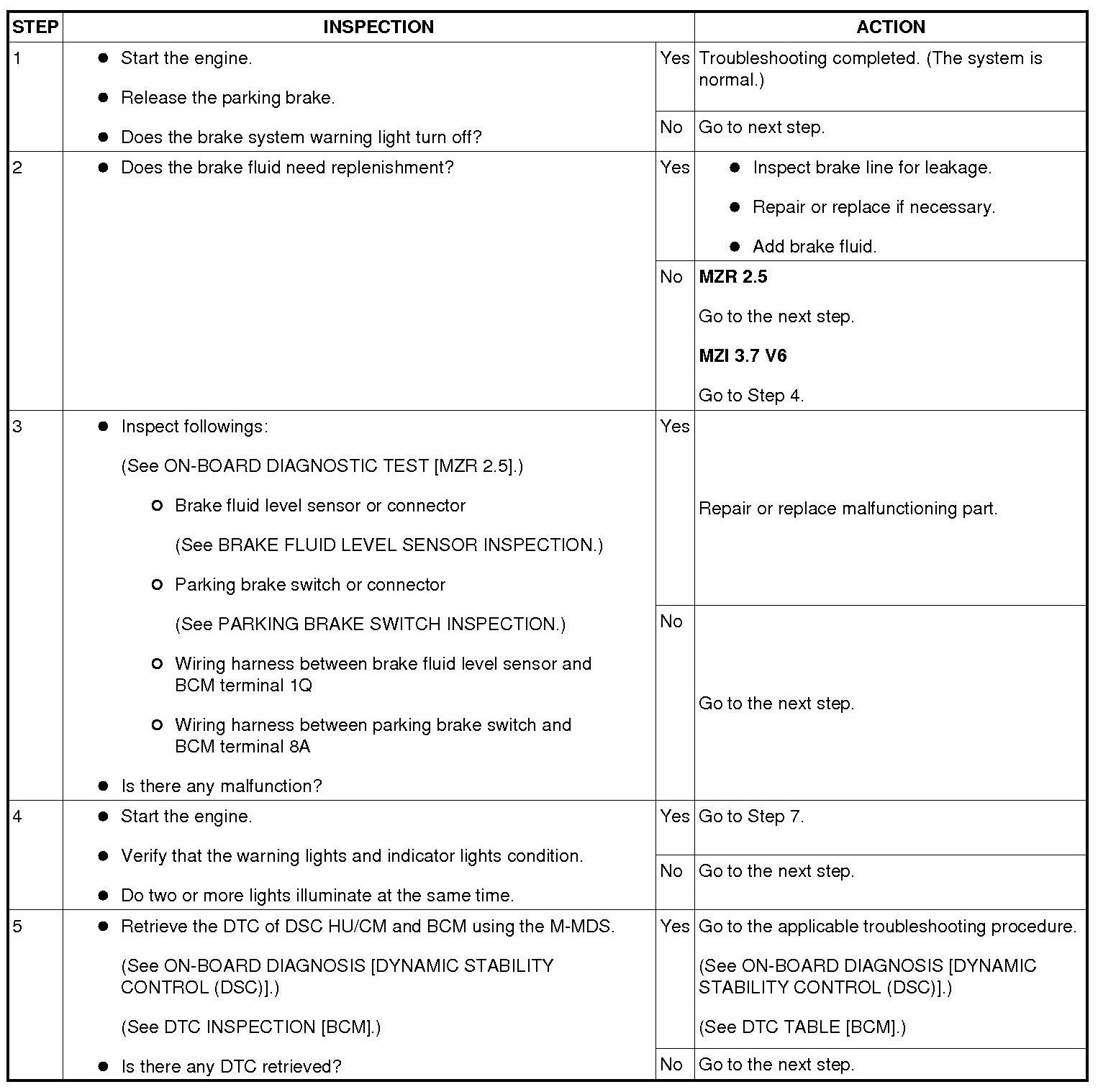

Diagnostic procedure
