No. 1 Fuel Gauge Needle Position Incorrect (With Malfunction Warning Light)





NO. 1 FUEL GAUGE NEEDLE POSITION INCORRECT [INSTRUMENT CLUSTER (WITH MALFUNCTION WARNING LIGHT)]

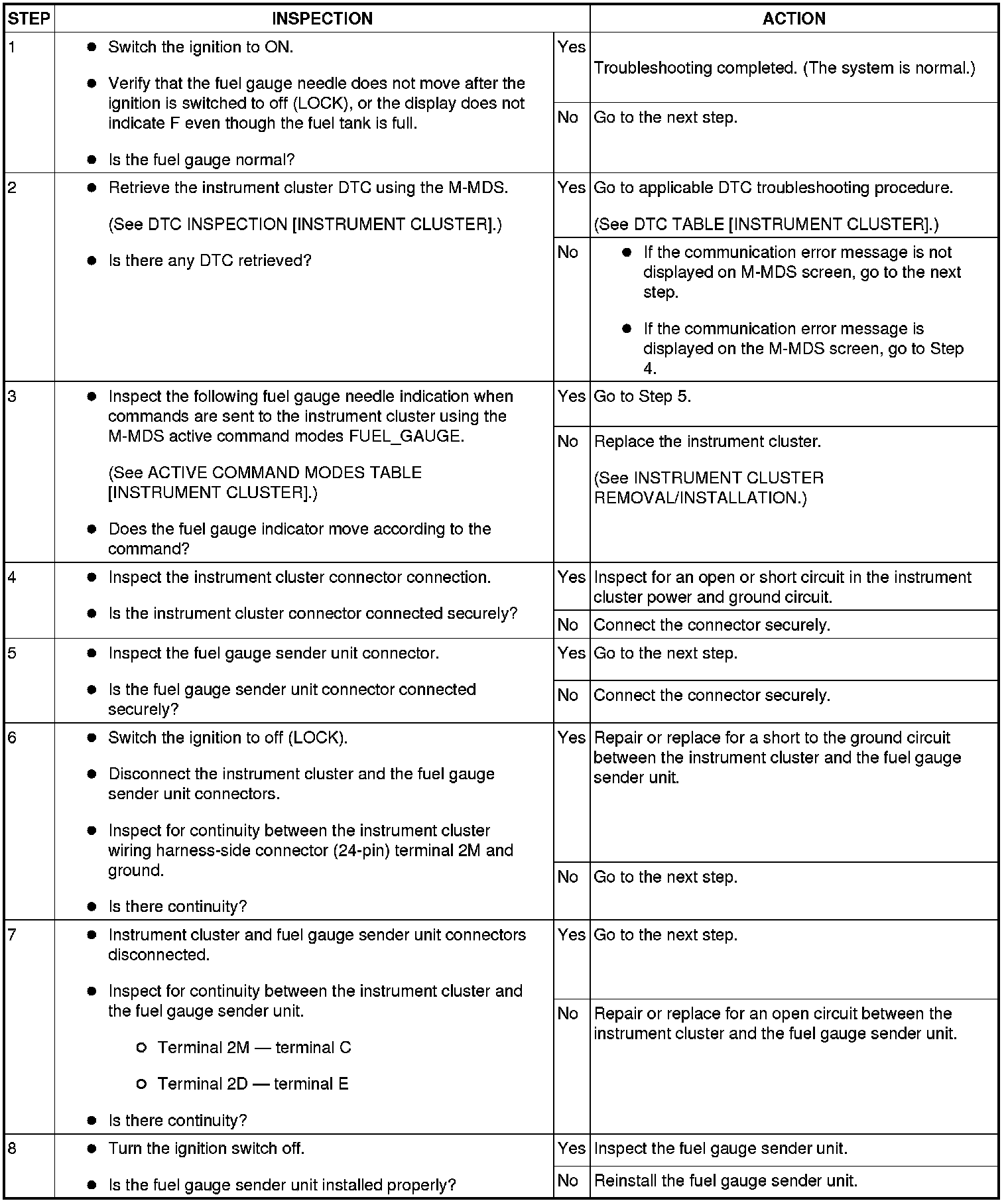

Diagnostic procedure
