Rear Drain Hose Removal

REAR DRAIN HOSE REMOVAL

1. Disconnect the negative battery cable.

2. Partially peel back the seaming welt.

3. Remove the following parts:
a. Sunroof seaming welt

b. A-pillar trims A-Pillar Trim Removal/Installation

c. Upper anchor of the front seat belt Front Seat Belt Removal/Installation

d. Front scuff plate Front Scuff Plate Removal/Installation

e. Rear scuff plate inner Rear Scuff Plate Removal/Installation

f. B-pillar lower trims B-Pillar Lower Trim Removal/Installation

g. B-pillar upper trims B-Pillar Upper Trim Removal/Installation

h. Rear seat cushion Rear Seat Cushion Removal/Installation

i. Rear side seat back Rear Side Seat Back Removal/Installation

j. C-pillar trims C-Pillar Trim Removal/Installation

4. Disconnect the dimming mirror connector. (vehicles with dimming mirror)

5. Disconnect the rain sensor connector. (vehicles with rain sensor)

6. Remove the sunvisors. Service and Repair

7. Remove the map light. Map Light Removal/Installation

8. Remove the assist handle. Service and Repair

9. Remove the headliner. Service and Repair

10. Remove the trunk end trim. Service and Repair

11. Remove the trunk side trim.

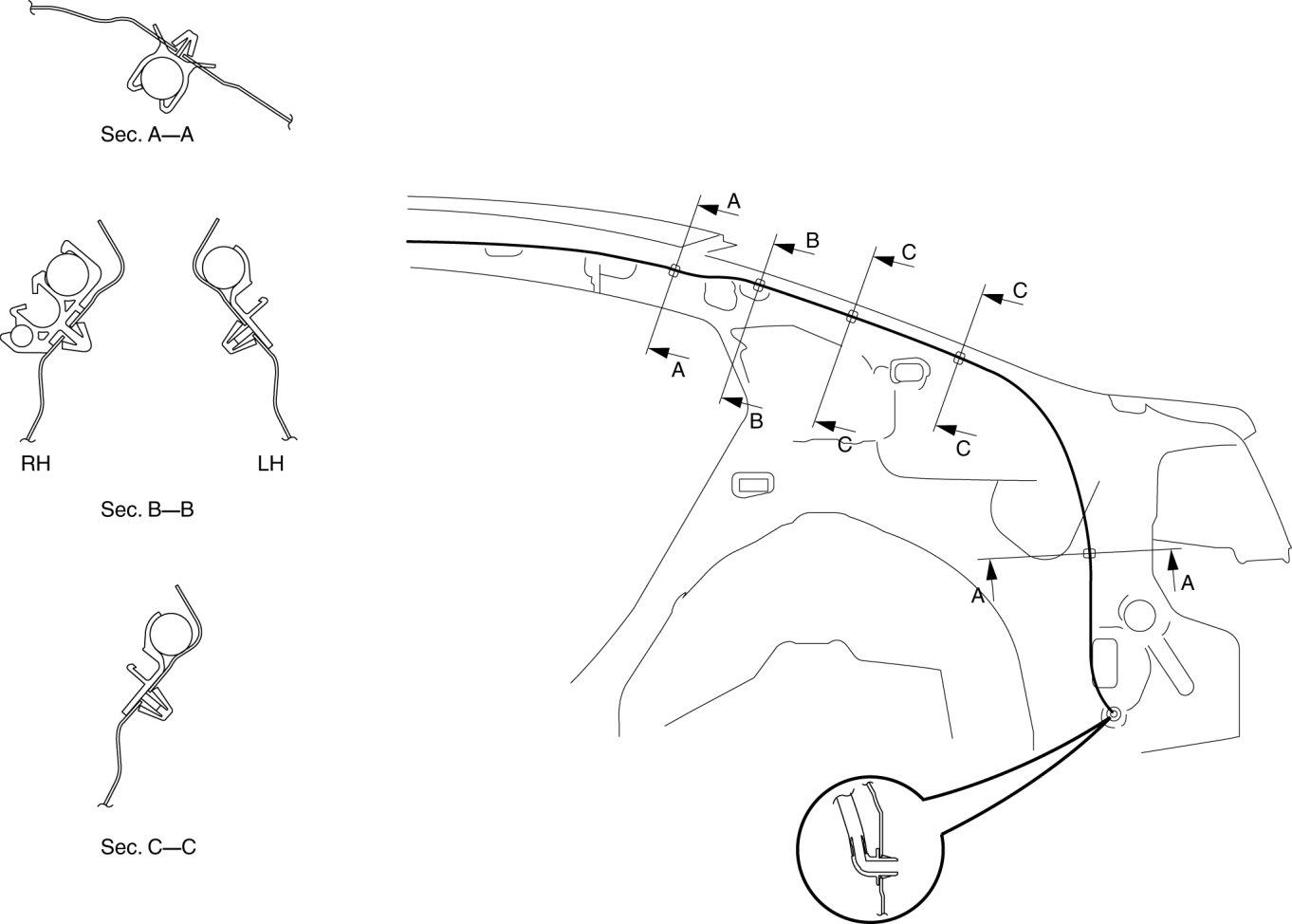

12. Disconnect the rear drain hose from the sunroof frame.

13. Remove the rear drain hose from the clips.






14. Pull the rear drain hose into the room side.

15. Remove the rear drain hose.
