Rear Door Striker: Service and Repair

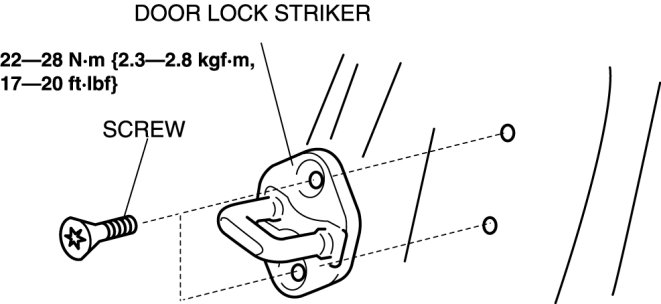

DOOR LOCK STRIKER REMOVAL/INSTALLATION

1. Remove the screws, then remove the door lock striker.






2. Install in the reverse order of removal.

3. Adjust the door lock striker. Adjustments
