Antenna Feeder No. 1 Inspection

ANTENNA FEEDER NO.1 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper panel Upper Panel Removal/Installation

b. Decoration panel Decoration Panel Removal/Installation

c. Shift knob (MTX) Service and Repair

d. Shift panel Shift Panel Removal/Installation

e. Center panel lower Center Panel Lower Removal/Installation

f. Center panel upper Center Panel Upper Removal/Installation

g. Climate control unit Full-Auto Air Conditioner Manual Air Conditioner

h. Audio unit (With audio system) Audio Unit Removal/Installation

i. Car-navigation unit (With car-navigation system) Service and Repair

j. A-pillar trim (RH) A-Pillar Trim Removal/Installation

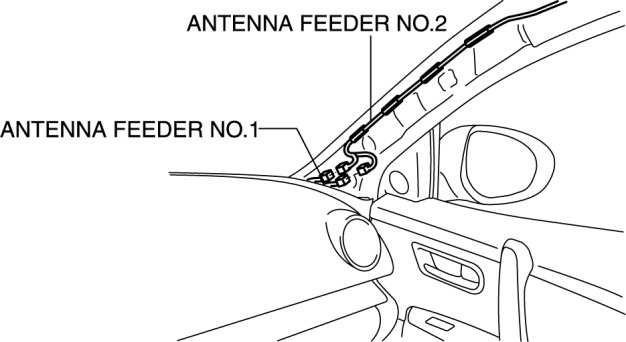

3. Disconnect the antenna feeder No.2.

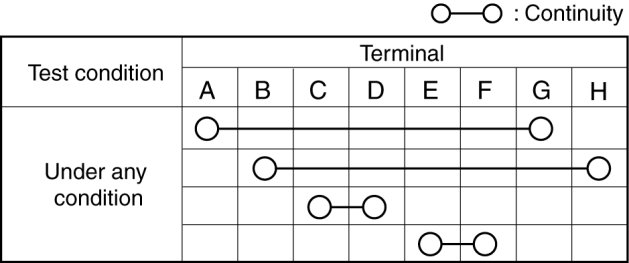

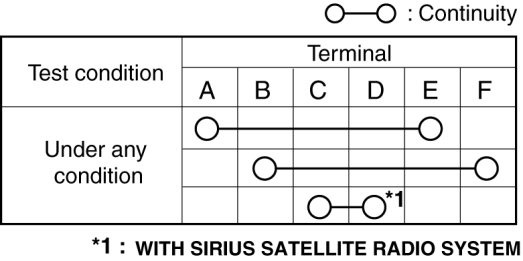

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.

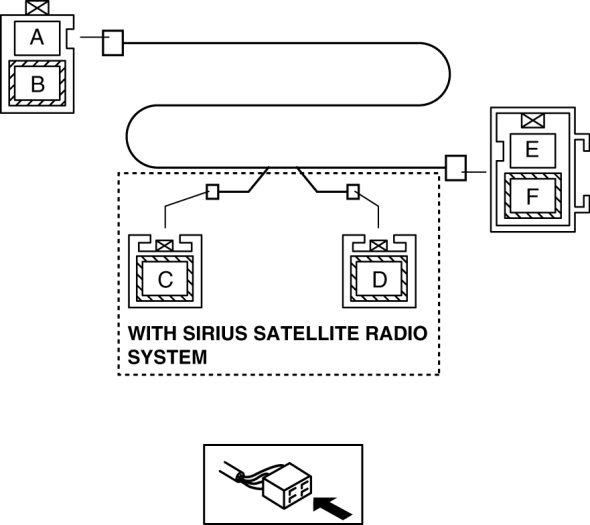

With audio system

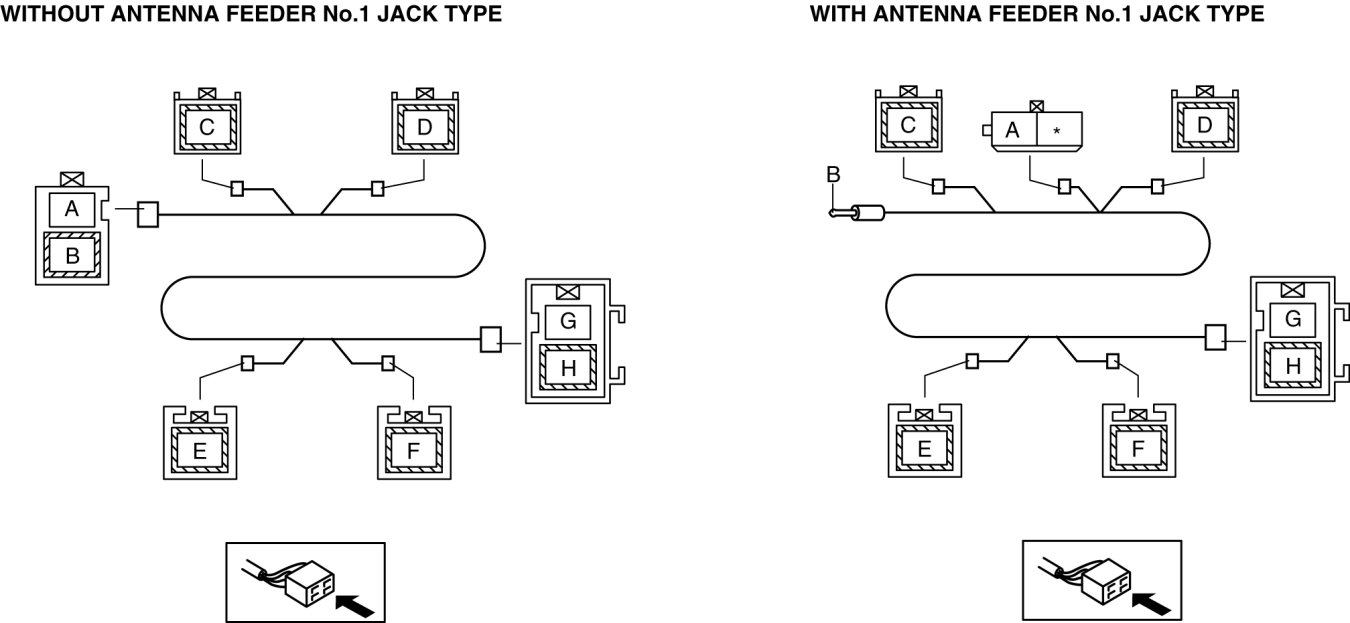

With car-navigation system






- If not as indicated in the table, replace antenna feeder No.1.

With audio system





With car-navigation system
