Quick Diagnostic Chart [Instrument Cluster]

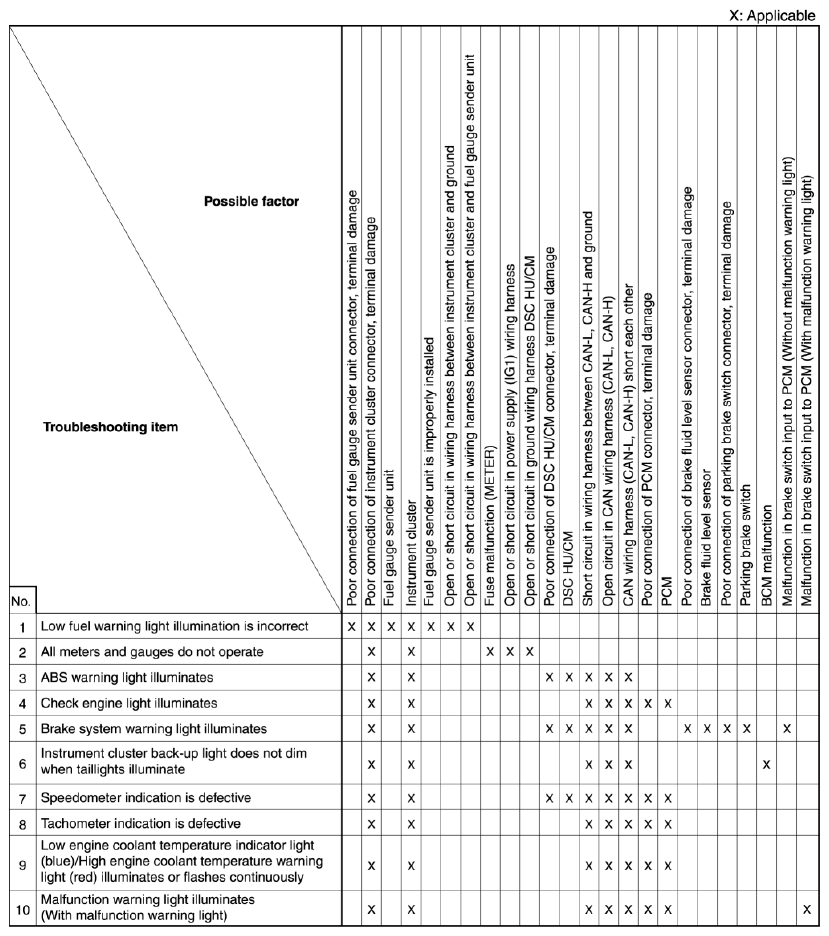

Fig 1: Instrument Cluster Quick Diagnostic Chart

G08152700
