Windshield Wiper And Washer Switch Inspection

WINDSHIELD WIPER AND WASHER SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Column cover Service and Repair

b. Wiper and washer switch Service and Repair

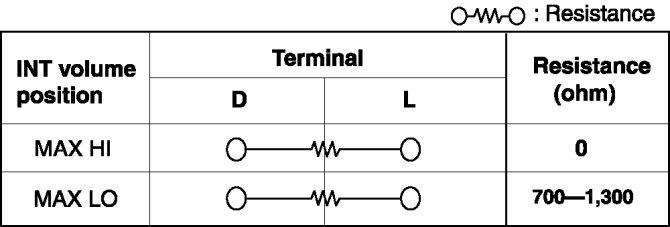

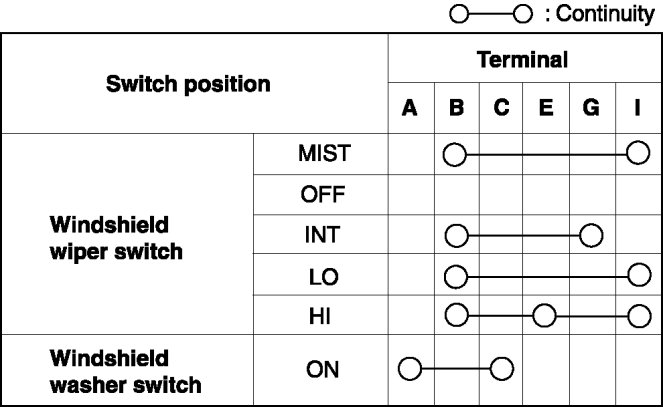

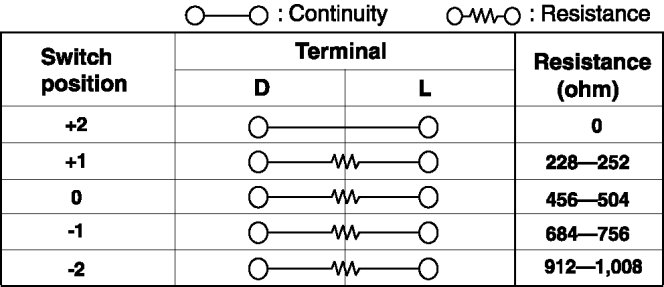

3. Verify that the continuity and resistance between the windshield wiper and washer switch terminals is as indicated in the table.

- If the continuity is not as indicated in the table, or if the resistance is not within the specification, replace the windshield wiper and washer switch. Service and Repair

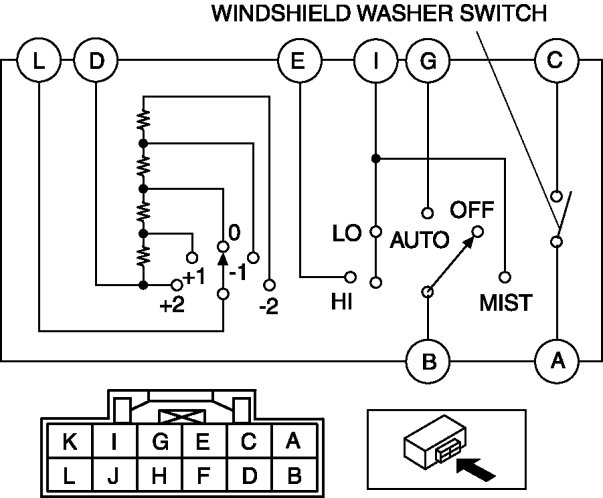

Vehicles With Auto Wiper System

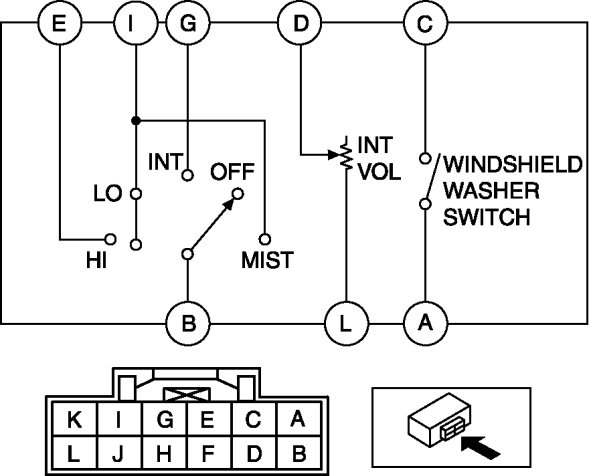

Vehicles Without Auto Wiper System
