Rear Wiper And Washer Switch Inspection

REAR WIPER AND WASHER SWITCH INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Column cover Service and Repair

b. Wiper and washer switch Service and Repair

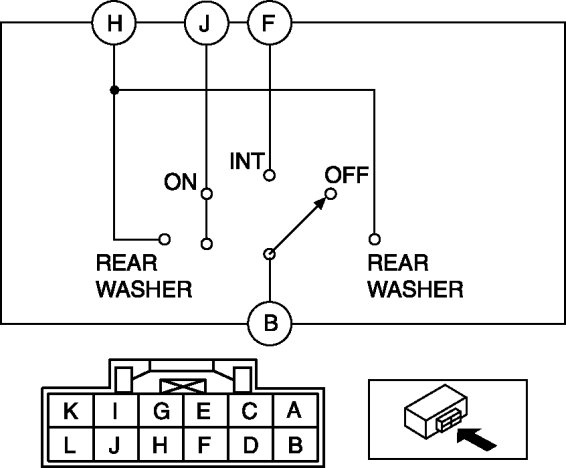

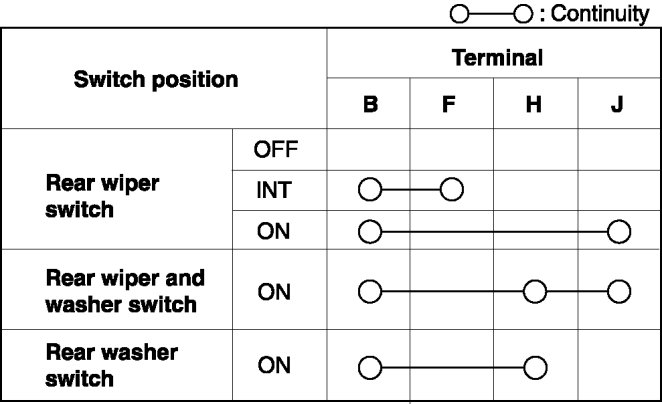

3. Verify that the continuity between the rear wiper and washer switch terminals is as indicated in the table.

- If the continuity is not as indicated in the table, replace the wiper and washer switch. Service and Repair
