Hazard Warning Switch: Service and Repair

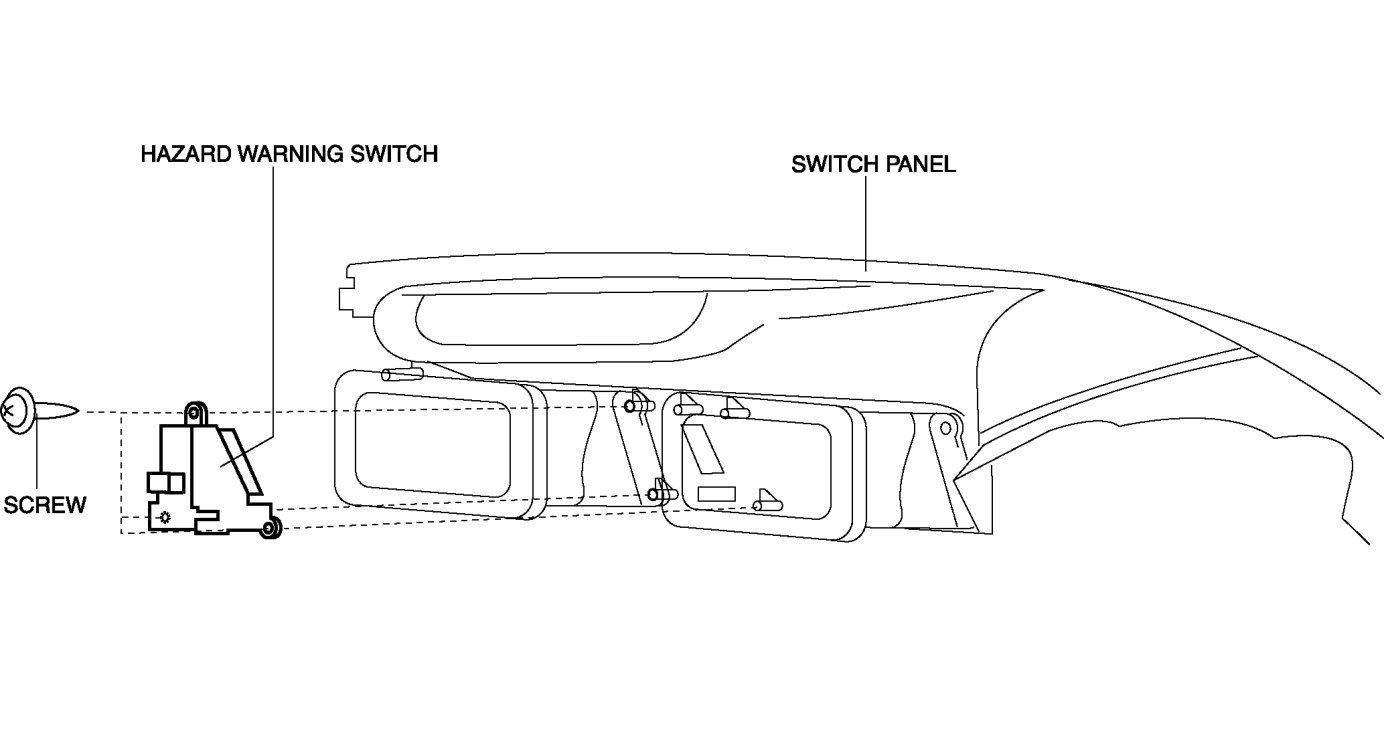

HAZARD WARNING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Upper column cover Service and Repair

b. Instrument cluster Removal and Replacement

c. Switch panel Service and Repair

3. Remove the screws.






4. Remove the hazard warning switch.

5. Install in the reverse order of removal.
