Second-Row Seat Belt Removal/Installation

SECOND-ROW SEAT BELT REMOVAL/INSTALLATION

CAUTION:
- The ELR (emergency locking retractor) has a spring that will unwind if the retractor cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear scuff plate Rear Scuff Plate Removal/Installation

b. Sub trunk Sub-Trunk Removal/Installation

c. Trunk end trim Trunk End Trim Removal/Installation

d. Third-row seat Rear - Third-Row Seat Removal/Installation

e. Third-row seat belt lower anchor installation bolt Third-Row Seat Belt Removal/Installation

f. Trunk side trim

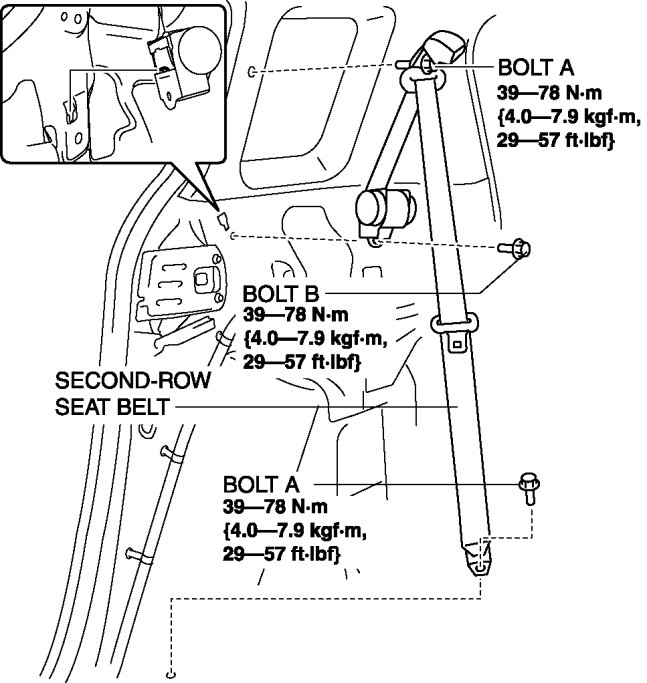

3. Remove the bolt A.






4. Remove the bolt B.

5. Remove the second-row seat belt.

6. Install in the reverse order of removal.
