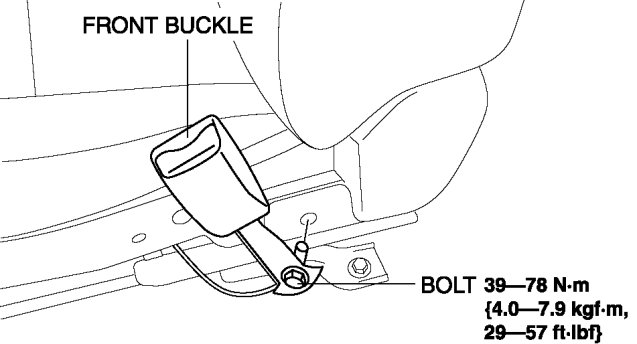

Front Buckle Removal/Installation

FRONT BUCKLE REMOVAL/INSTALLATION

1. Switch the ignition to off.

2. Disconnect the negative battery cable.

3. Remove the front seat belt anchor cover. (passenger-side)

4. Remove the front seat belt lower anchor installation bolt. (passenger-side)

5. Remove the front seat. Front Seat Removal/Installation

6. Remove the bolt.






7. Remove the front buckle.

8. Install in the reverse order of removal.
