Home >> Mazda >> 2012 >> 5 L4-2.5L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Locations >> Connector Locations >> Short Connector - Passenger Side Airbag Module

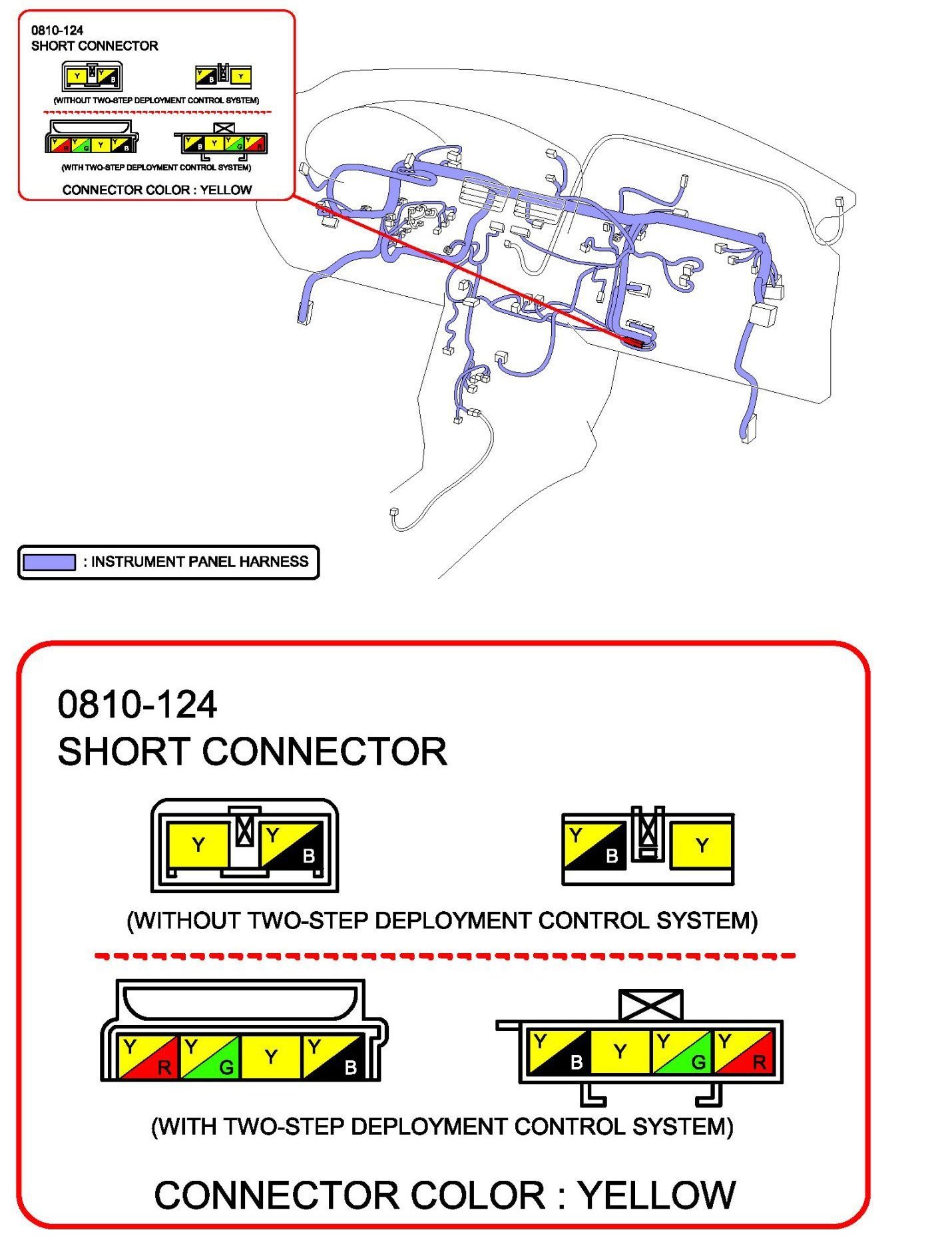

Short Connector - Passenger Side Airbag Module
