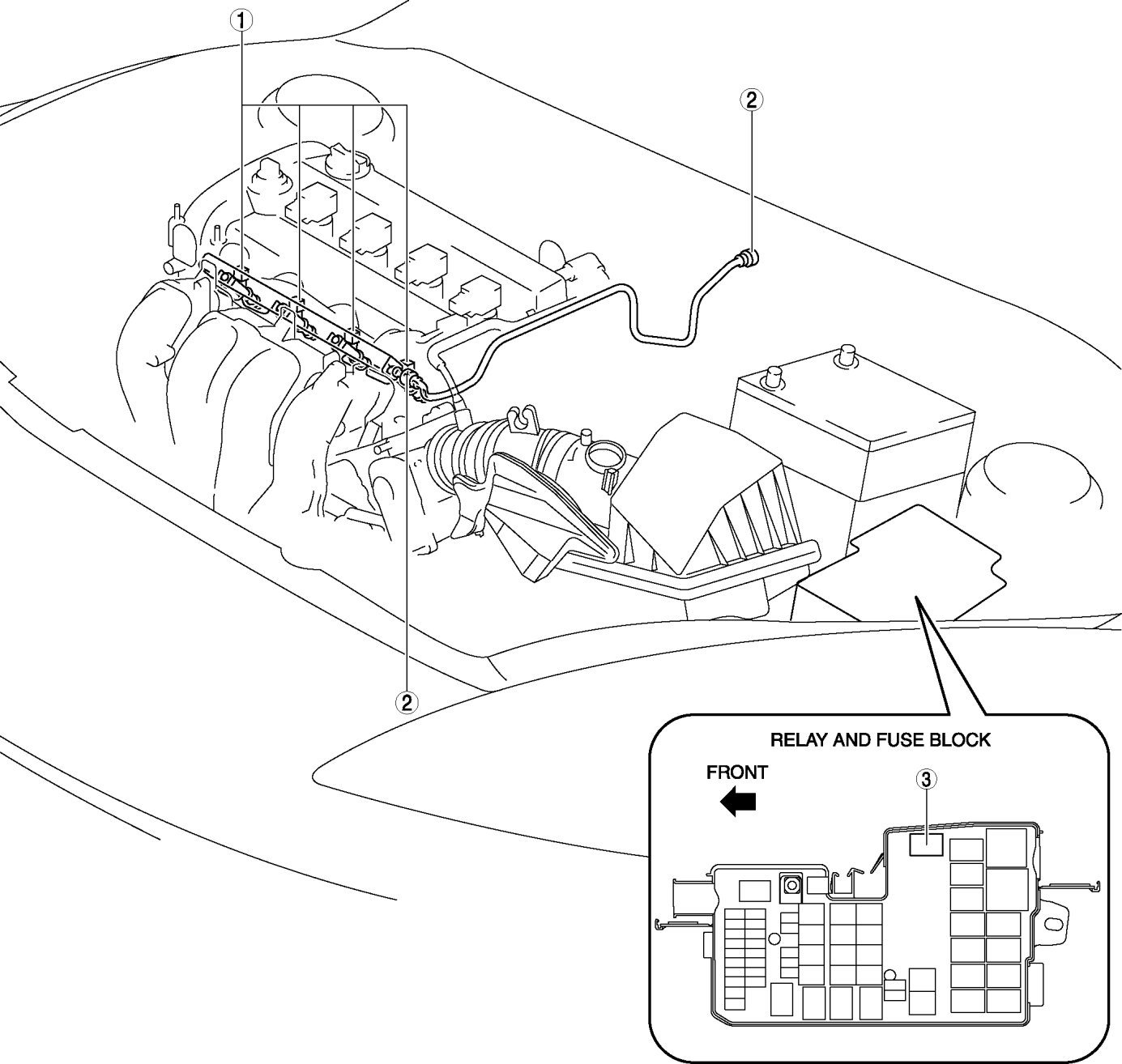

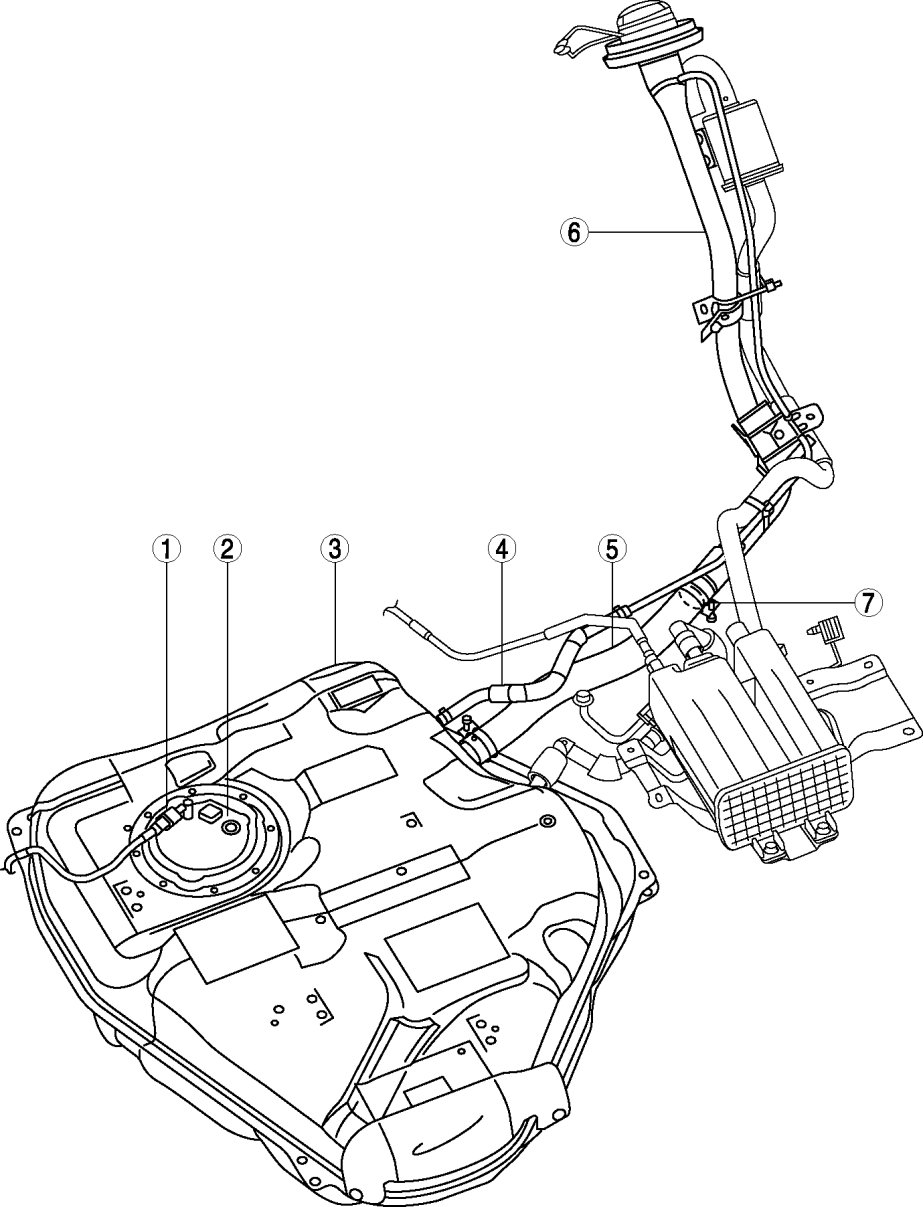

Home >> Mazda >> 2012 >> 5 L4-2.5L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Fuel Delivery and Air Induction >> Fuel Pump Relay >> Locations >> Fuel System Location Index
