No. 9 Low Engine Coolant Temp Indicator (Blue)/High Engine Coolant Temp Warning (Red) Illuminates/Flashes Continuously





NO. 9 LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED) ILLUMINATES OR FLASHES CONTINUOUSLY [INSTRUMENT CLUSTER]

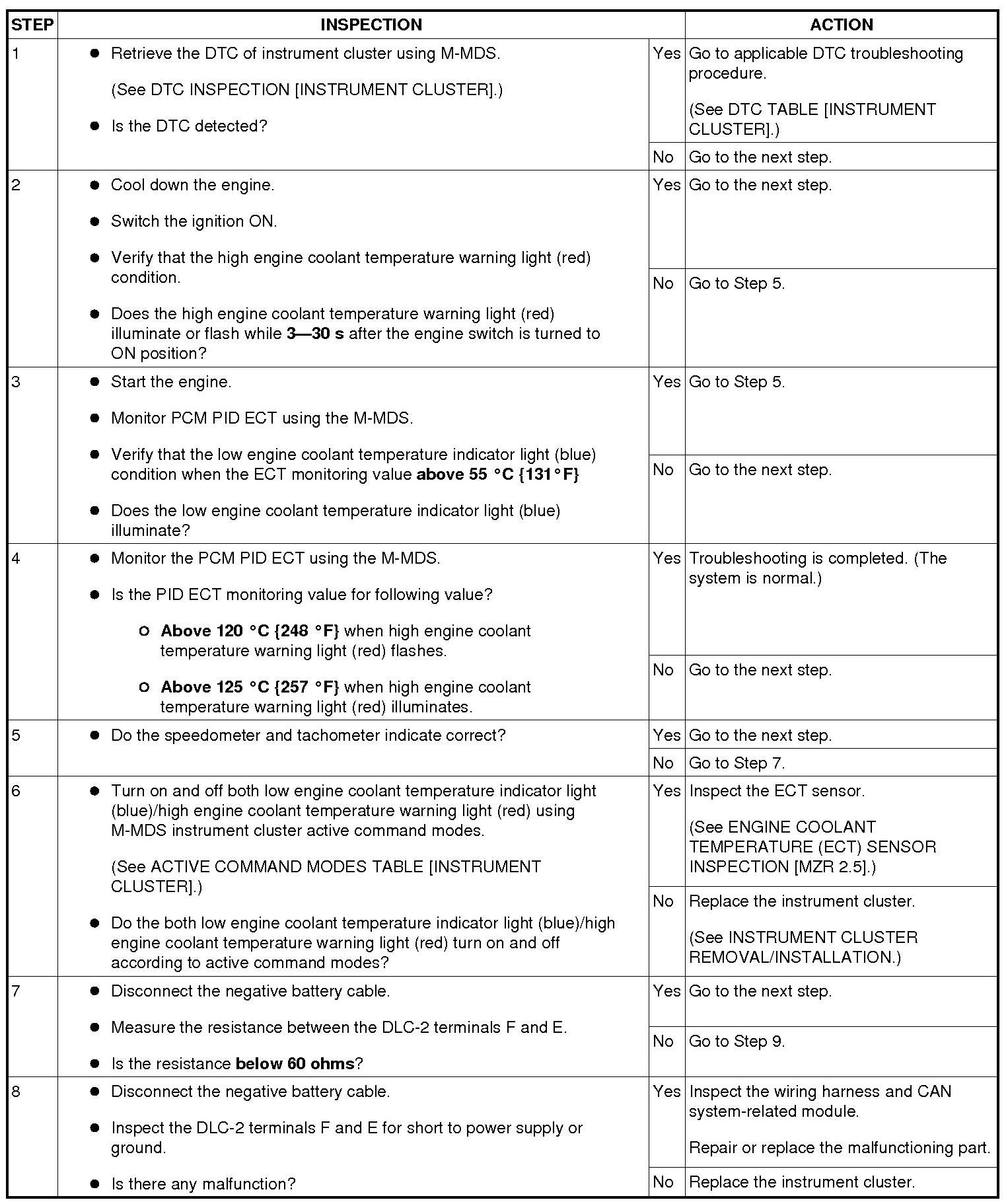

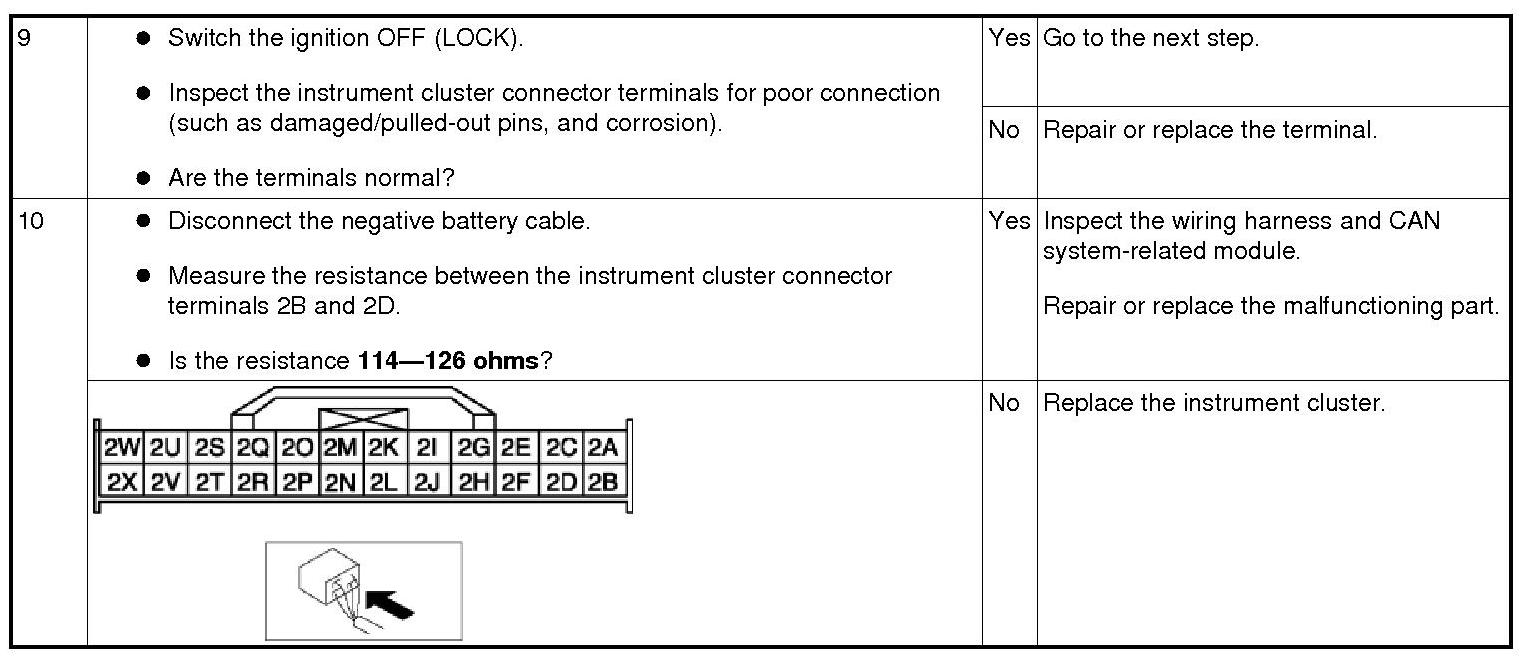

Diagnostic procedure
