Parking Brake Warning Switch: Testing and Inspection

PARKING BRAKE SWITCH INSPECTION

1. Disconnect the parking brake switch connector. Service and Repair

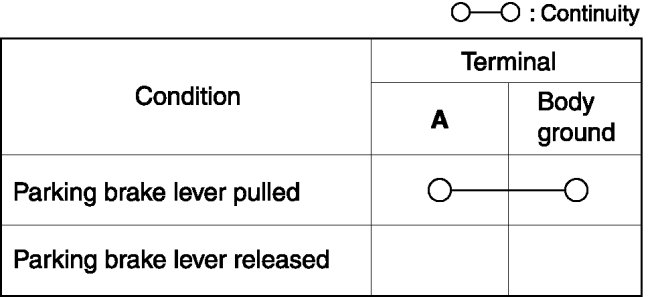

2. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the parking brake switch. Service and Repair
