Rear Header Trim Removal/Installation

REAR HEADER TRIM REMOVAL/INSTALLATION

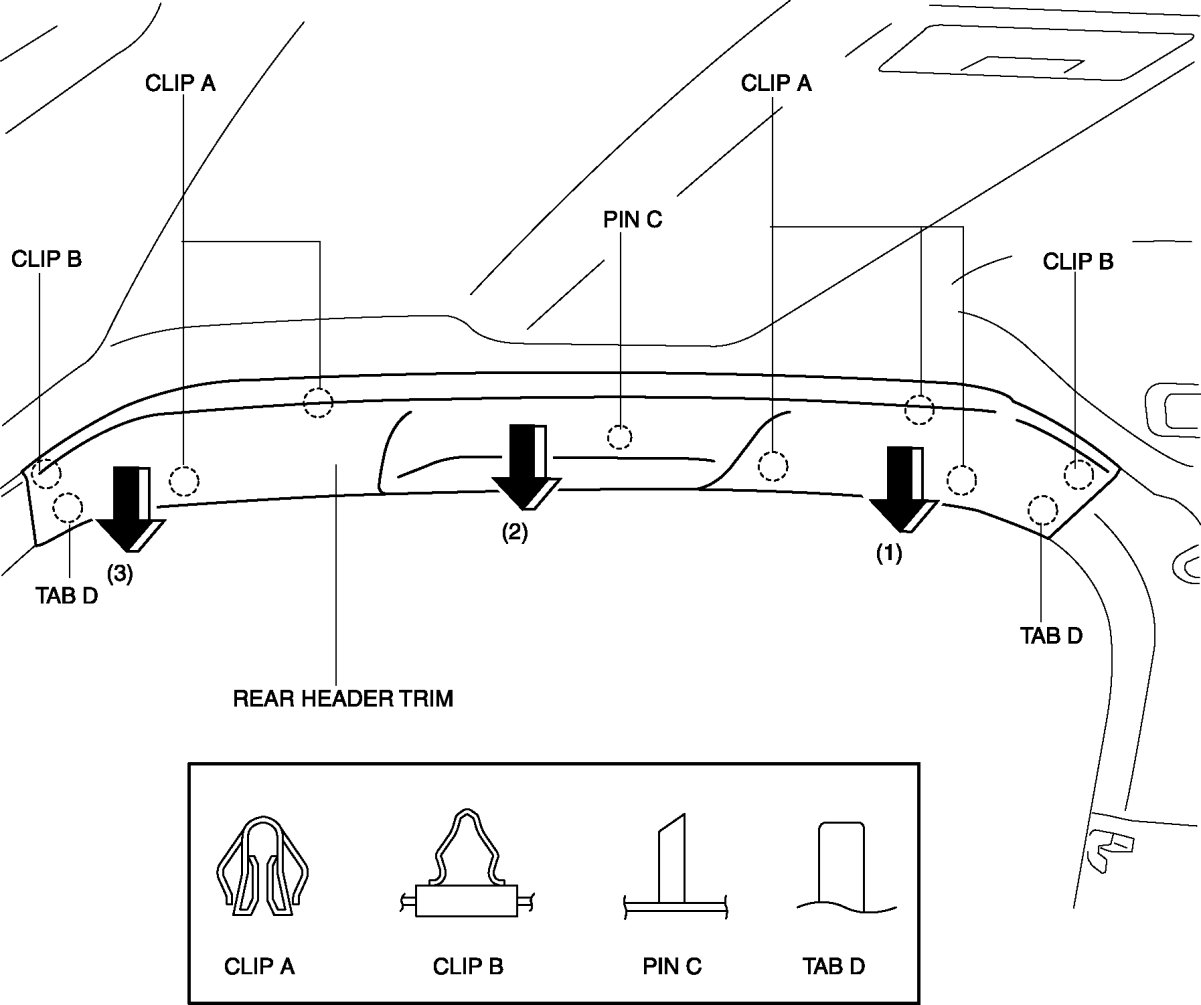

1. Pull the rear header trim in the direction of the arrow (1), (2), (3) and detach the clips A, clip B, pin C and guide D.






2. Remove the rear header trim.

3. Install in the reverse order of removal.
