Rear Scuff Plate Removal/Installation

REAR SCUFF PLATE REMOVAL/INSTALLATION

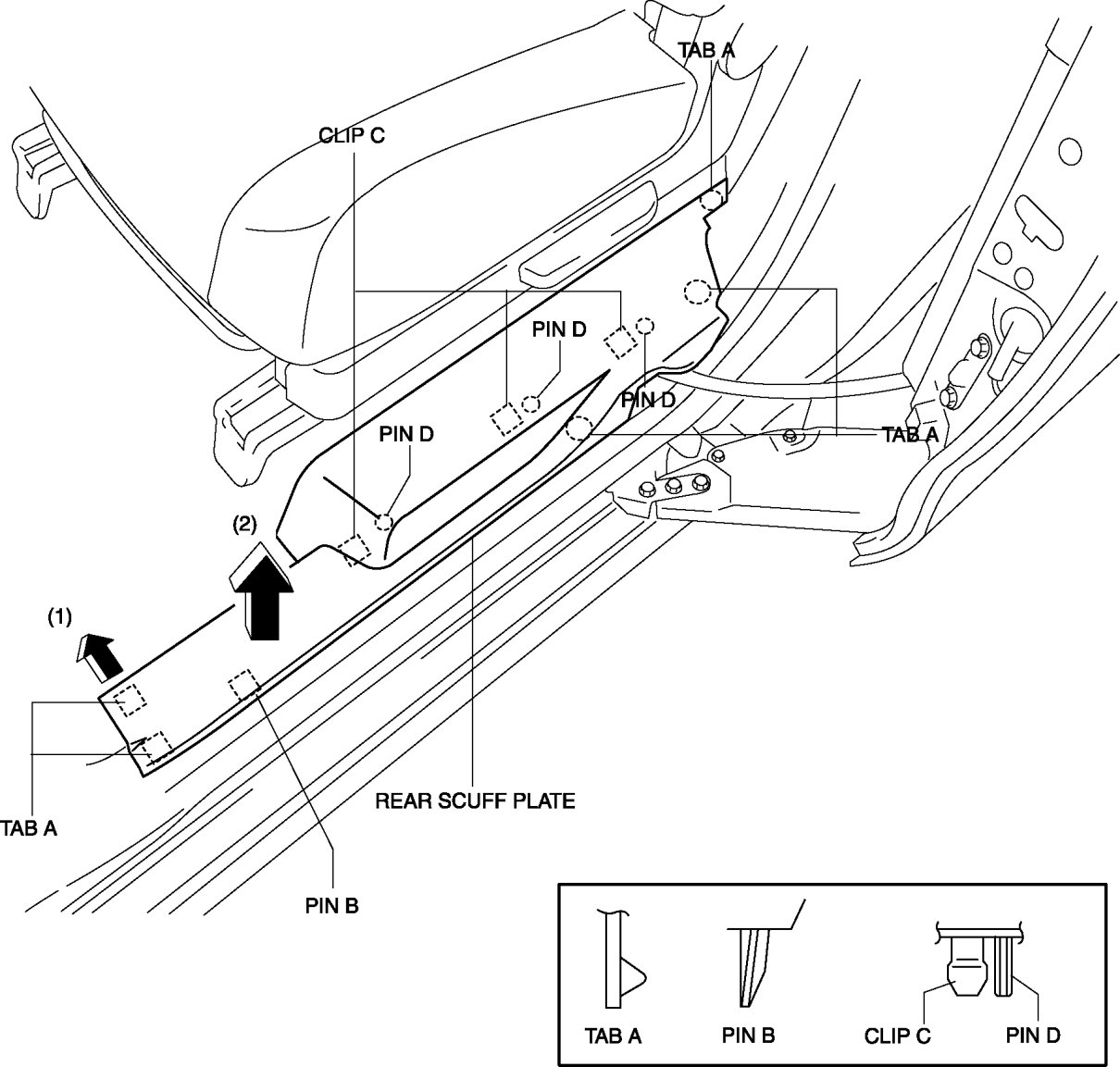

1. Detach tabs A while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach pins B, clips C, pins D while pulling in the direction of the arrow (2).






2. Remove the rear scuff plate.

3. Install in the reverse order of removal.
