Front Scuff Plate Removal/Installation

FRONT SCUFF PLATE REMOVAL/INSTALLATION

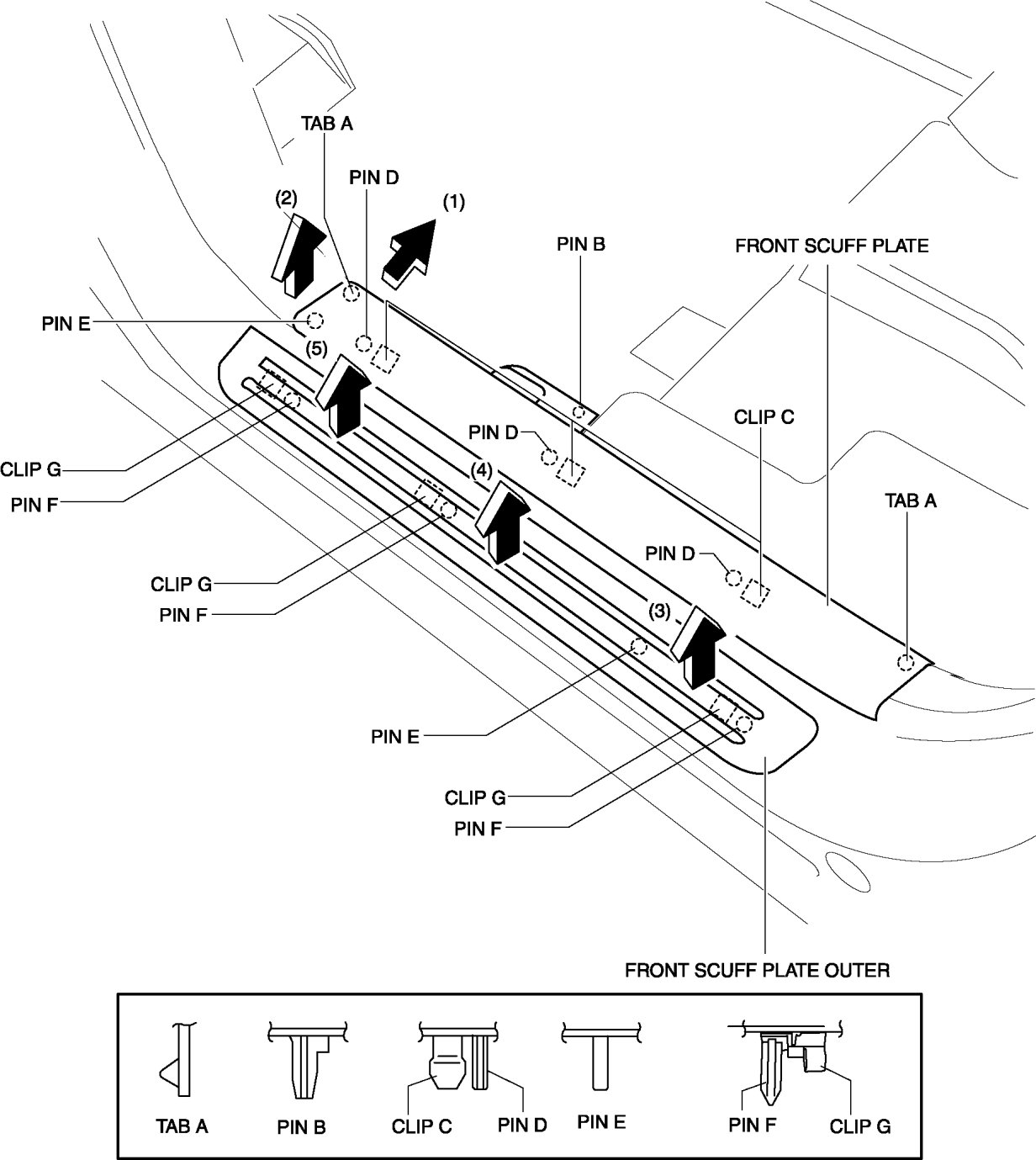

1. Detach tabs A while pulling the front scuff plate in the direction of the arrow (1) shown in the figure, then detach pin B, clip C, pins D and pin E while pulling in the direction of the arrow (2).






2. Remove the front scuff plate.

3. Pull the front scuff plate outer in the direction of arrow (3), (4), (5) while remove the pin E, pins F and clip G.

4. Remove the front scuff plate outer.

5. Install in the reverse order of removal.
