Antenna Feeder No. 2 Inspection

ANTENNA FEEDER NO.2 INSPECTION

1. Disconnect the negative battery cable.

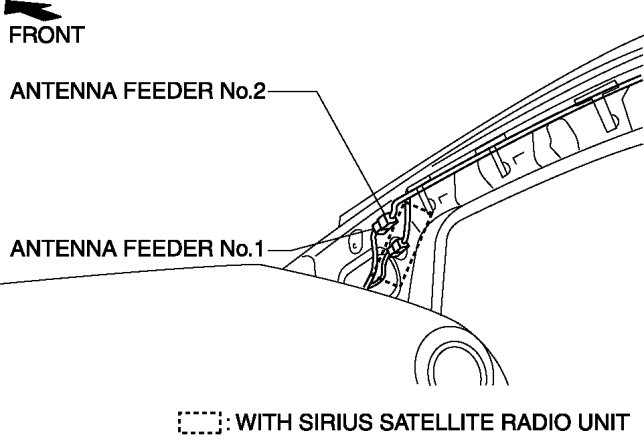

2. Remove the A-pillar trim. (RH) A-Pillar Trim Removal/Installation

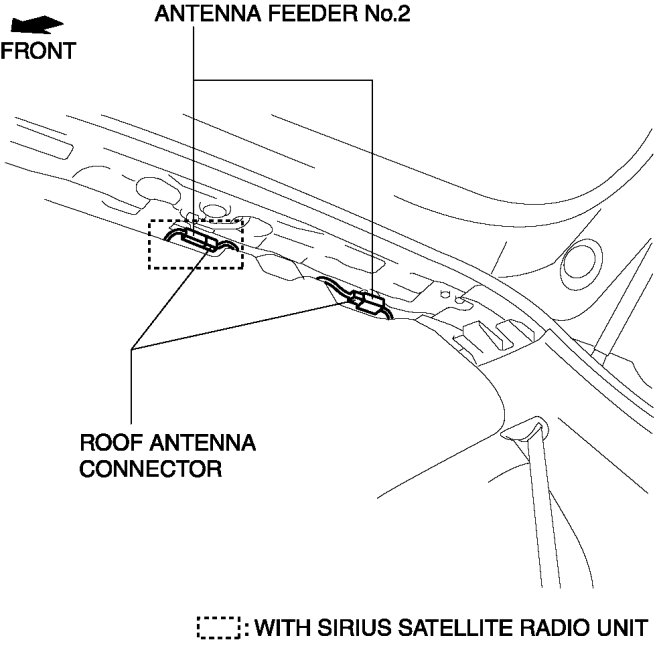

3. Remove the rear header trim. Rear Header Trim Removal/Installation

4. Disconnect the antenna feeder No.1.






5. Disconnect the roof antenna connector.

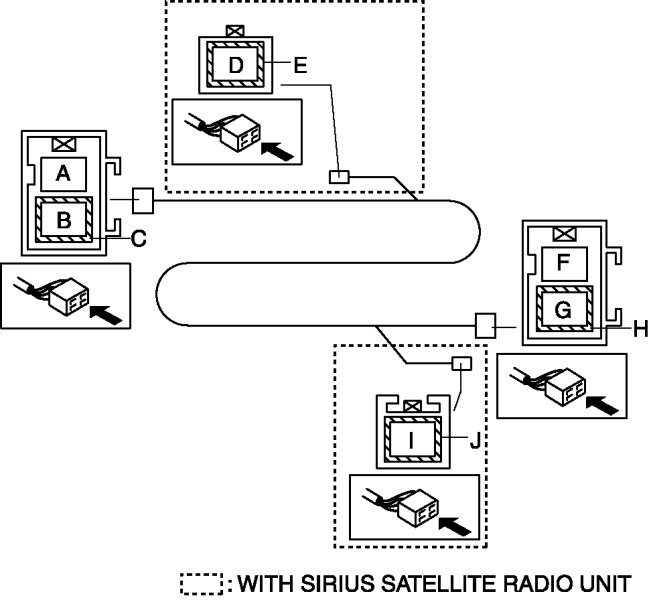

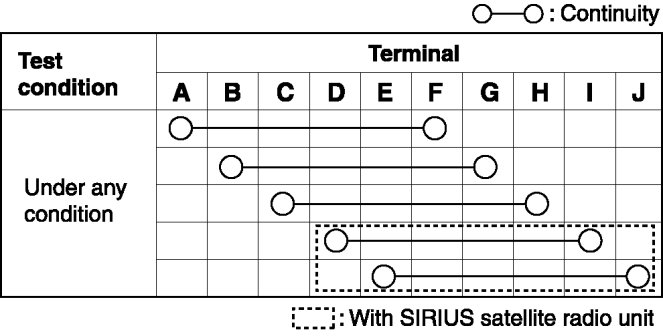

6. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.2.
