Clutch Pedal Position Sensor / Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 2.0, MZR 2.5]

Continuity Inspection

1. Verify that the CPP switch is installed properly. Clutch Pedal Removal/Installation [G35M-R] Clutch Pedal Removal/Installation [G66M-R]

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable. Removal and Replacement

4. Disconnect the CPP switch connector. Clutch Pedal Removal/Installation [G35M-R] Clutch Pedal Removal/Installation [G66M-R]

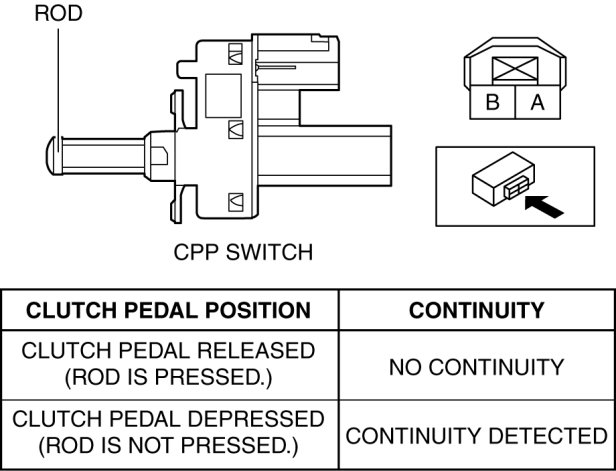

5. Verify that the continuity between CPP switch terminals A and B when the clutch pedal is depressed and when it is released is according to the following table:
