Fog/Driving Lamp Switch: Testing and Inspection

FRONT FOG LIGHT SWITCH INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the column cover. Service and Repair

3. Remove the light switch. Light Switch Removal/Installation

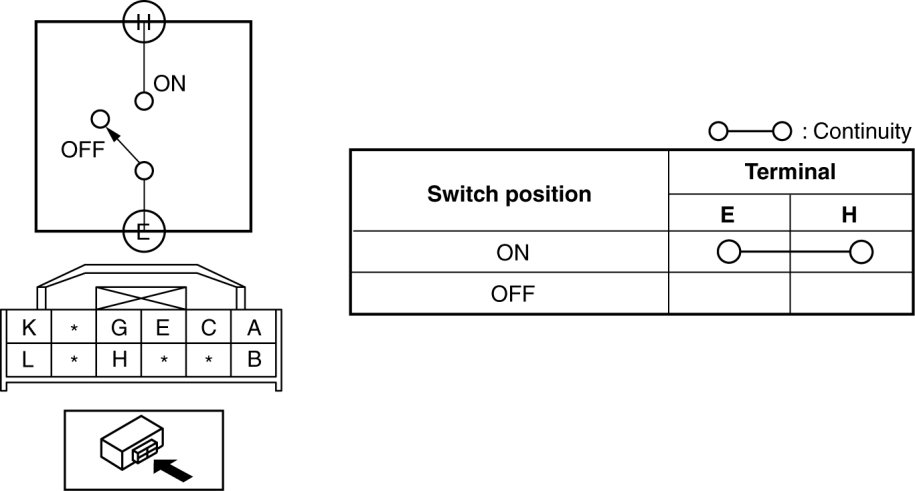

4. Verify that the continuity between the front fog light switch terminals is as indicated in the table.

- If not as indicated in the table, replace the light switch.
