Front Buckle Removal/Installation

FRONT BUCKLE REMOVAL/INSTALLATION

1. Switch the ignition to off.

2. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

3. Remove the front seat. Removal and Replacement

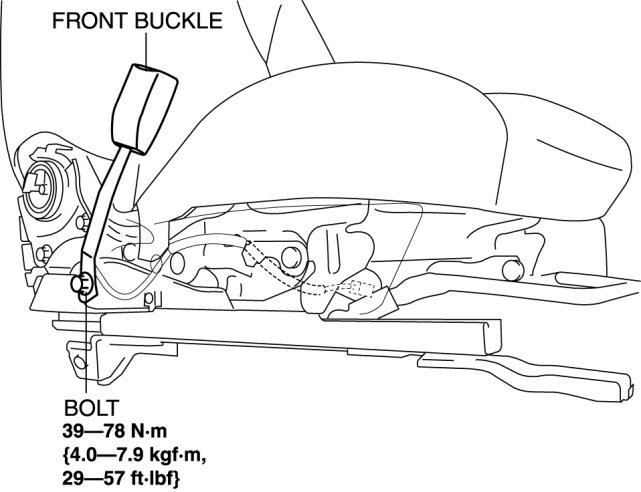

4. Remove the bolt.






5. Remove the front buckle.

6. Install in the reverse order of removal.
