Home >> Mazda >> 2012 >> 3 L4-2.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No. 7 Instrument Cluster Illumination Does Not Dim When Taillights Illuminate

No. 7 Instrument Cluster Illumination Does Not Dim When Taillights Illuminate





NO. 7 INSTRUMENT CLUSTER ILLUMINATION DOES NOT DIM WHEN TAILLIGHTS ILLUMINATE [INSTRUMENT CLUSTER]

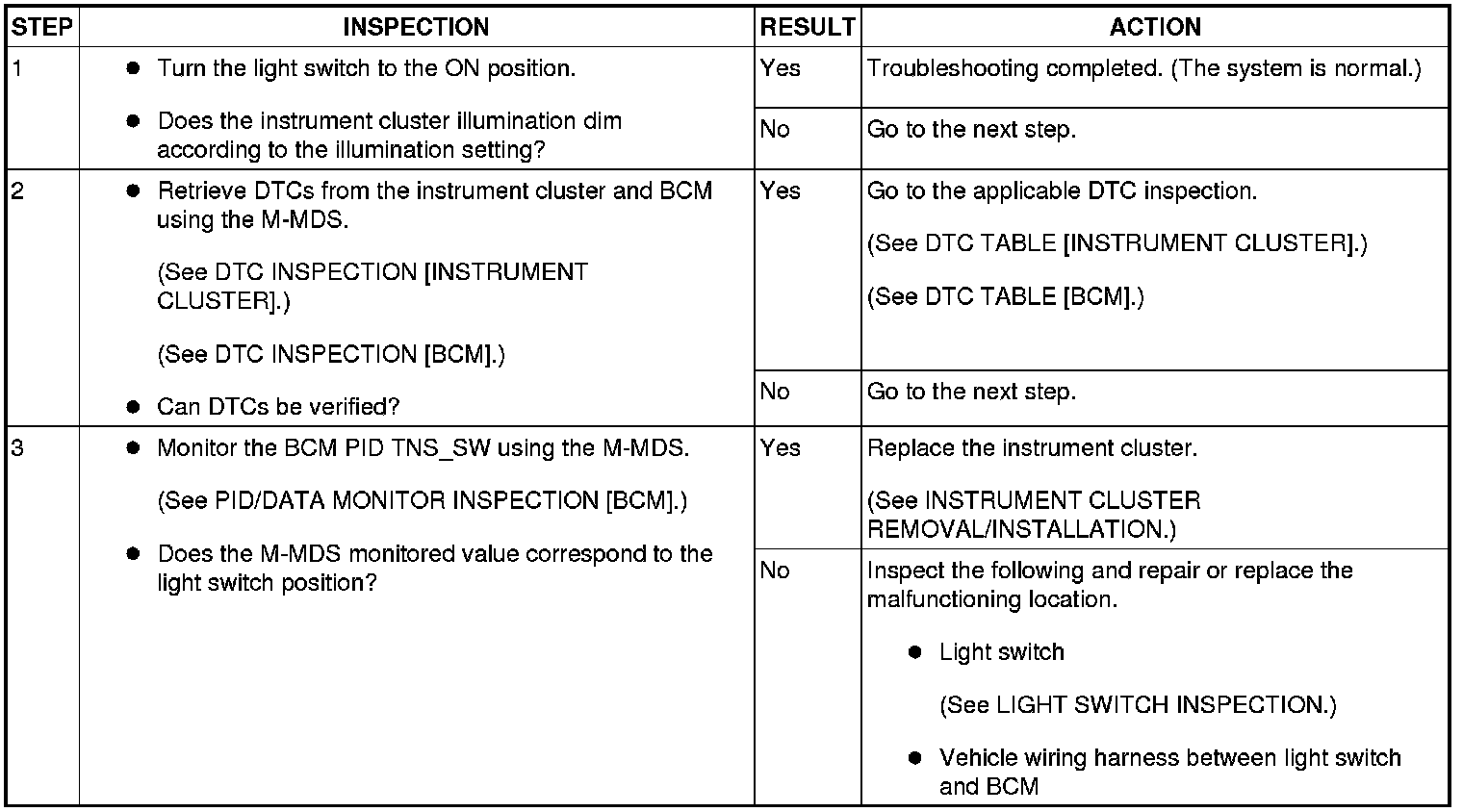

Diagnostic procedure
