Parking Brake Warning Switch: Testing and Inspection

PARKING BRAKE SWITCH INSPECTION

1. Remove the upper panel. Upper Panel Removal/Installation

2. Disconnect the parking brake switch connector.

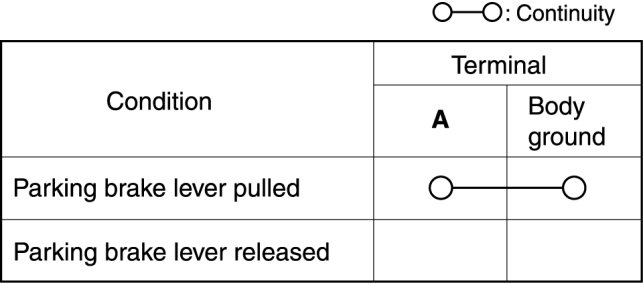

3. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the parking brake lever.
